Product details
This product bundle has already been pre-fitted and tested for this specific vehicle with fixed points, tracks, or some flush rails with fixed points.
What's Included: 4 Yakima SkyLine Towers, 2 Load Bars (of your choice), and vehicle specific Landing Pad or Pads if applicable.
Roof racks made simple: You need 2 load bars, 4 towers for a base roof rack, and landing pad kit.
Once you have your base roof rack, you can now add your gear-specific mounts for bikes, kayaks, cargo boxes, etc.
Since the towers are predefined, you only need to choose which load bars best suit your needs. The table below will give you a quick rundown on the differences.
Our best-selling bar is the JetStream bar for its noise reduction, aero efficiencies, and accessory mounting versatility. See below for more details.
WHICH BARS DO I CHOOSE?
JetStream Load Bars (Black):
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise
Wind Noise:
JetStream Load Bars (Black):
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction
JetStream Load Bars (Silver):
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise
Wind Noise:
JetStream Load Bars (Silver):
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction
CoreBar Load Bars:
- Roll-formed galvanized steel
- Vinyl wrapped for corrosion resistance
Wind Noise:
CoreBar Load Bars:

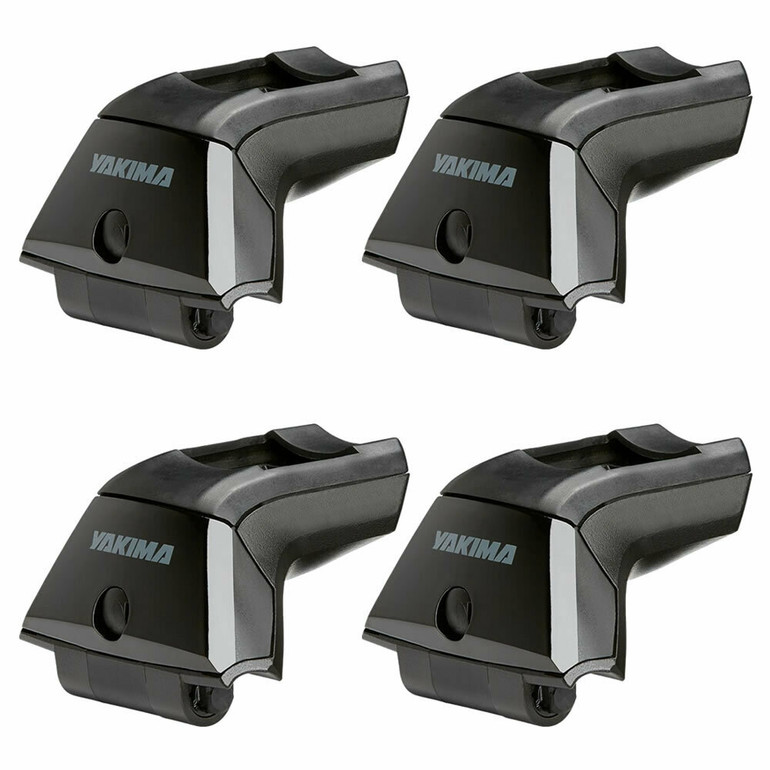

SkyLine Towers:
- Fits all styles of Landing Pad
- Secure and simple – may be the easiest-to-use rack system out there
- Works with JetStream, CoreBar and RoundBar crossbars
- BarBed™ has 12° of pitch adjustment to optimize tower position and level bars on roofs with curved flush rails
- Maximum load rating of 220lbs (100kg), depending on vehicle and bar rating
- Easily locks to you vehicle with our SKS system (sold separately)
Landing Pads:
- Some kits are sold in sets of 2 and some in sets of 4. This bundle will have the correct amount!
- Snap-on covers keep out the elements when the rack is removed
- Snap-on covers keep out the elements
Have questions? Email hello@therackshop.com, call 512-351-9849, or stop by the shop!
The Rack Shop
7200 McNeil Drive, B2
Austin, TX 78729
Installation Notes:
- Modification required to the roof trim. Read instructions thoroughly before purchasing/installing
- System shown/installed with 60" Crossbars. 50" Crossbars recommended by Yakima. For 50" option, CLICK HERE
2016-2022:
BASE RACK
MEASUREMENTS
2005-2015:
BASE RACK
MEASUREMENTS
NOTES
- HullRaiser and HighRoller require one set of MightyMount 39H (PN 8003539) to be compatible with Yakima CoreBar and JetStream bars.
- HullyRollers, MultiMount, and Mako Saddles require one set of MightyMount 39H (PN 8003539) per pair to be compatible with Yakima CoreBar and JetStream bars.
- Using Yakima RoundBars with Yakima BaseLine, TimberLine, SkyLine or RidgeLine towers will require the purchase of RoundBar SL Adapter (PN 8003536) sold separately.
- If crossbar spread is greater than 36", shorter skis may not fit or take full advantage of security features.
- "Stepped" pad is required for this application.
- The mounting points on this vehicle are located under ditch molding or plugs on the roof. Removal and/or permanent modification may be required for this fit. Most body shops or rack install shops are qualified to do the installation.
- Caution! when open, sunroof or panoramic roof may interfere with some accessories.
- Arrows on Landing Pad should be pointed away from the middle of the vehicle.
- CAUTION! Do not over tighten Landing Pad hardware. Pad should be snug against the roof with no movement.
- All loads extending beyond the length of the roof (except cargo boxes) must be secured to both the front and rear of the vehicle, in addition to the rack.
- SideWinder (Tandem Bike Mount) will not work due to crossbar spread limitations.
- Raptor and Raptor Aero, will not work due to crossbar spread limitations.
- HighSpeed and HighRoad will not work on this application due to crossbar spread or other limitations.
- ShowDown requires crossbars one size larger than the recommended minimum for adequate vehicle side clearance on this application.
- Always be sure to tie down your SUP as per instructions. SupPup and SupDawg require using nose tie down strap.
- If your vehicle is equipped with a sunroof or panoramic glass roof, prior to operation, ensure adequate clearance exists with roof rack and/or accessories installed.
- This application requires the use of the offset mounting point on the pivot mount. Please reference your landing pad or LockNLoad SL adapter instructions for proper installation. If the Pivot Mounts included with your LockNLoad platform do not have an alternate mounting point you will need PN 8881302. Call Customer Service at (888) 925-4621 Monday through Friday, 7:00 AM to 5:00 PM, PST. Please allow 3-5 business days for delivery.
- Crossbar spread is fixed.
- SkinnyWarrior requires an extension (SKU 8007016) to fit your vehicle.
- OffGrid Md and LoadWarrior baskets require an extension to fit your vehicle.
- OffGrid Lg and MegaWarrior baskets require an extension to fit your vehicle.
- Limited to 2 surf/sail/paddleboards. Boards must be stacked - NEVER carry side-by-side.
- When paired with Yakima HD Crossbars, this fit has the potential to carry a maximum weight limit of 220lbs (100kg).
- Yakima SkyRise Small and Medium rooftop tents can only be used in side deployment scenarios on this vehicle.
- RoadShower SM and MD can accommodate crossbar spreads of 24” – 50”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
- RoadShower LG can accommodate crossbar spreads of 32” - 78”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
