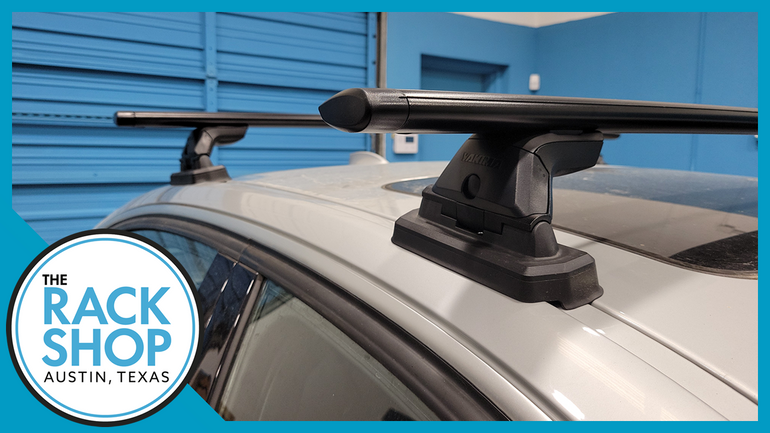

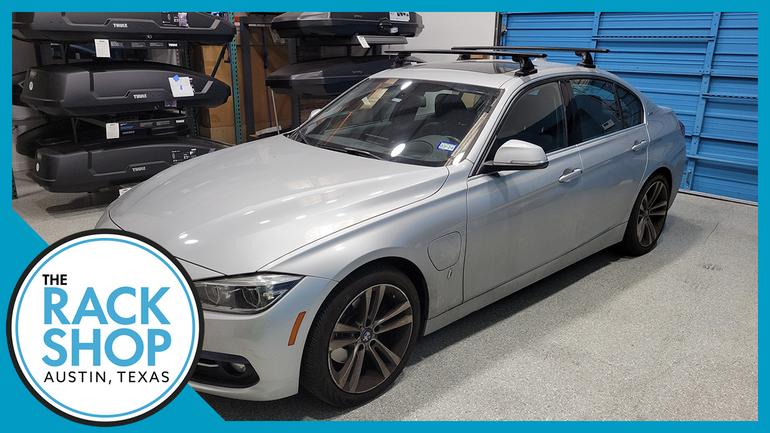

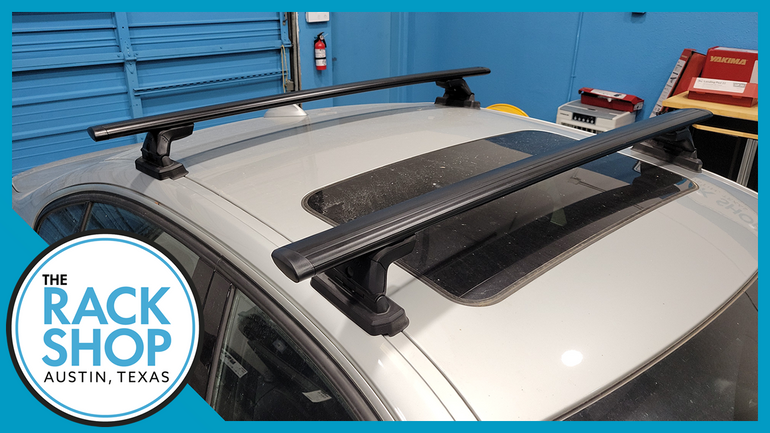

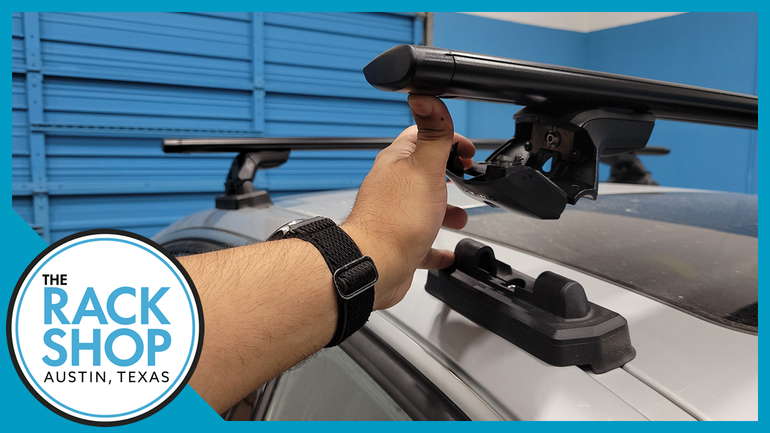

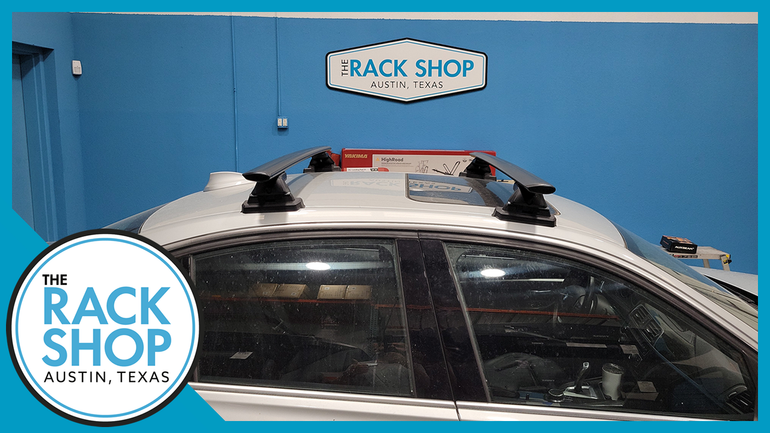

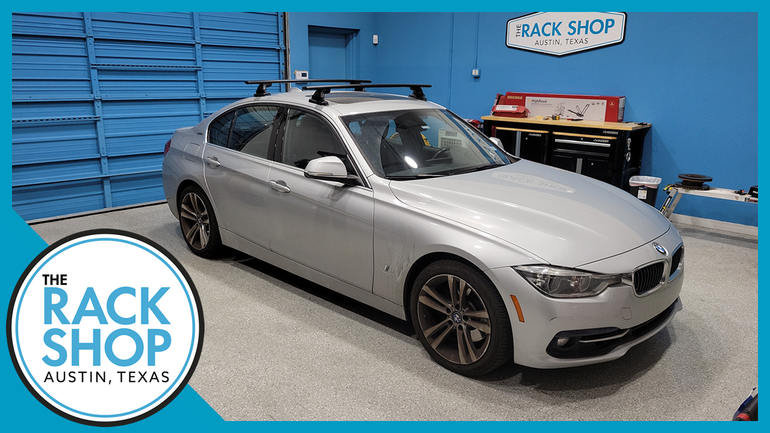

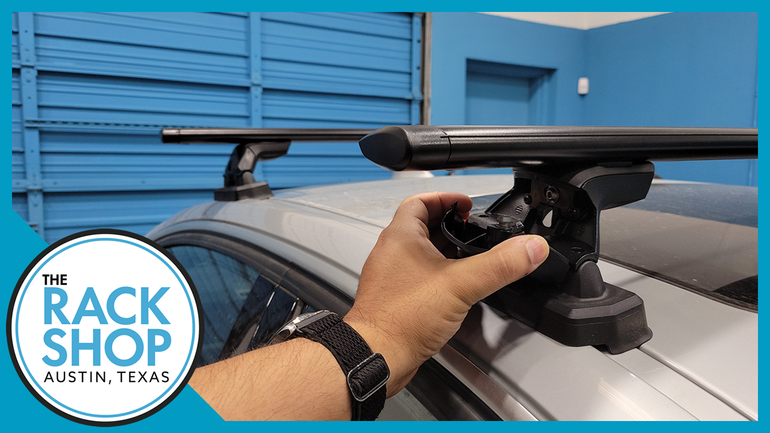

2012-2018 BMW 3 Series 4DR (w/fixed points) Yakima Crossbar Complete Roof Rack

$618.85

Product details

Description
Shipping Information
Custom Tab
Technical Information

This product bundle has already been pre-fitted and tested for this specific vehicle with fixed points, tracks, or some flush rails with fixed points.

What's Included: 4 Yakima SkyLine Towers, 2 Load Bars (of your choice), and vehicle specific Landing Pad or Pads if applicable.

Roof racks made simple: You need 2 load bars, 4 towers for a base roof rack, and landing pad kit.

Once you have your base roof rack, you can now add your gear-specific mounts for bikes, kayaks, cargo boxes, etc.

Since the towers are predefined, you only need to choose which load bars best suit your needs. The table below will give you a quick rundown on the differences.

Our best-selling bar is the JetStream bar for its noise reduction, aero efficiencies, and accessory mounting versatility. See below for more details.

WHICH BARS DO I CHOOSE?

JetStream Load Bars (Black):

- High performance aluminum teardrop shape
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise

Wind Noise:

JetStream Load Bars (Black):

- Internal support adds serious strength
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction

JetStream Load Bars (Silver):

- High performance aluminum teardrop shape
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise

Wind Noise:

JetStream Load Bars (Silver):

- Internal support adds serious strength
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction

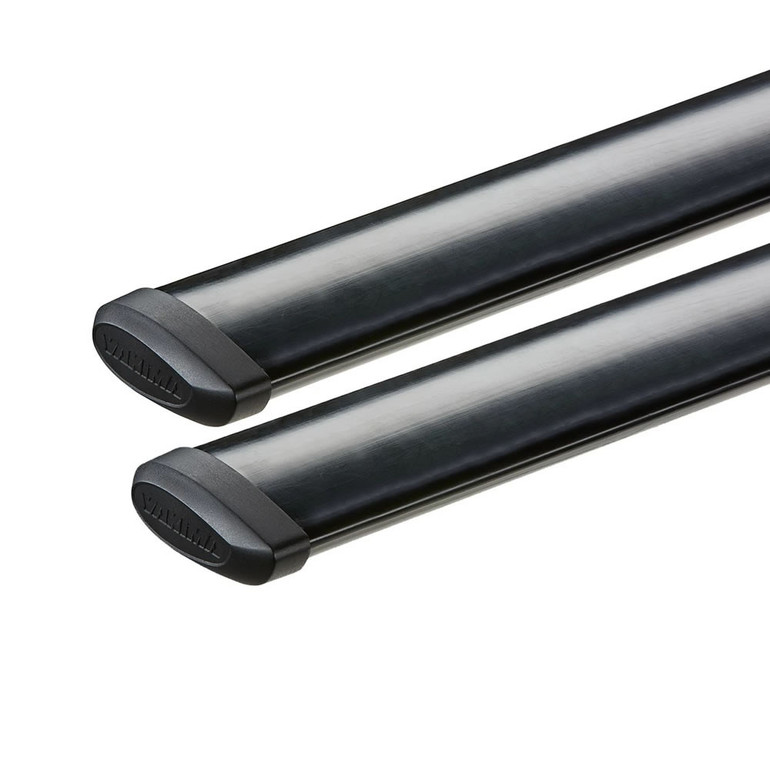

CoreBar Load Bars:

- High performance teardrop shape
- Roll-formed galvanized steel
- Vinyl wrapped for corrosion resistance

Wind Noise:

CoreBar Load Bars:

- Great balance of aerodynamics and cost savings.

- Proven load-bearing performance

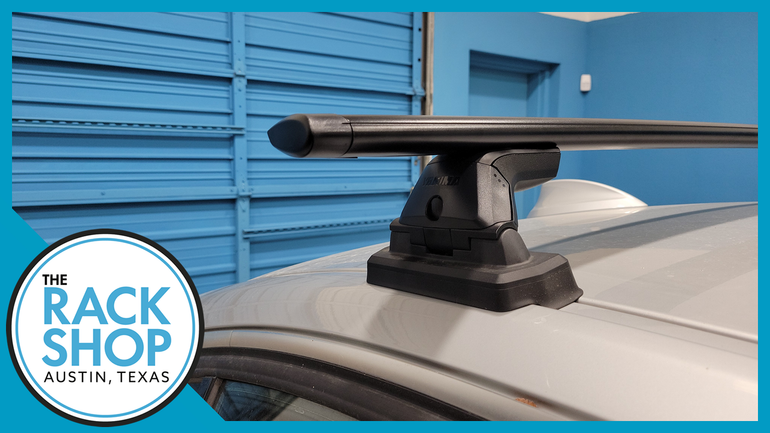

SkyLine Towers:

- Fits all styles of Landing Pad
- Secure and simple – may be the easiest-to-use rack system out there
- Works with JetStream, CoreBar and RoundBar crossbars
- BarBed™ has 12° of pitch adjustment to optimize tower position and level bars on roofs with curved flush rails
- Maximum load rating of 220lbs (100kg), depending on vehicle and bar rating
- Easily locks to you vehicle with our SKS system (sold separately)

Landing Pads:

- Designed to fit with SkyLine and Control Tower system for the easiest on/off roof rack in the industry
- Some kits are sold in sets of 2 and some in sets of 4. This bundle will have the correct amount!
- Snap-on covers keep out the elements when the rack is removed
- Snap-on covers keep out the elements

Have questions? Email hello@therackshop.com, call 512-351-9849, or stop by the shop!

The Rack Shop
7200 McNeil Drive, B2
Austin, TX 78729

Shipping Information

Custom Tab

Technical Information

BASE RACK
LANDING PAD: Landing Pad 22
TOWER: SkyLine Towers (Set of Four)
FAIRING: 40" WindShield
MINIMUM BAR SIZE: Small

MEASUREMENTS
M4: 29 "
WEIGHT LIMIT: 165 lbs

NOTES

Note

Canoes are limited to 14 feet or less on this application.

HullRaiser and HighRoller require one set of MightyMount 39H (PN 8003539) to be compatible with Yakima CoreBar, JetStream bars and FX systems.

HullyRollers, MultiMount, and Mako Saddles require one set of MightyMount 39H (PN 8003539) per pair to be compatible with Yakima CoreBar, JetStream bars and FX systems.

Using Yakima RoundBars with Yakima BaseLine, TimberLine, SkyLine, RidgeLine, or SightLine towers will require the purchase of RoundBar SL Adapter (PN 8003536) sold separately.

"Stepped" pad is required for this application.

Use M6x28 mounting hardware for this application.

Caution! when open, sunroof or panoramic roof may interfere with some accessories.

Arrows on Landing Pad should be pointed away from the middle of the vehicle.

CAUTION! Do not over tighten Landing Pad hardware. Pad should be snug against the roof with no movement.

All loads extending beyond the length of the roof (except cargo boxes) must be secured to both the front and rear of the vehicle, in addition to the rack.

SideWinder (Tandem Bike Mount) is compatible with Yakima RoundBar only.

109

Always be sure to tie down your SUP as per instructions. SupPup and SupDawg require using nose tie down strap.

110

If your vehicle is equipped with a sunroof or panoramic glass roof, prior to operation, ensure adequate clearance exists with roof rack and/or accessories installed.

187

Boa and ForkChop bike mounts will not work on this application due to crossbar spread limitations.

191

Limited to 2 surf/sail/paddleboards. Boards must be stacked - NEVER carry side-by-side.

601

Your vehicle has the potential to accept Yakima SkyRise Small and Medium Rooftop tents but has not been evaluated by the Yakima Fit Team. Please check online at http://fitlookup.yakima.com for the most up to date information. Please see Yakima.com for our user guidelines.

604

RoadShower SM and MD can accommodate crossbar spreads of 24” – 50”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.

611

MajorShady can accommodate crossbar spreads of 26" - 76". The distance from the front or rear clamp to the end of the awning must not be greater than 50". Do not mount greater than 1" outboard of tower.

612

MajorShady is not compatible with Yakima Round Bar or CoreBar.
