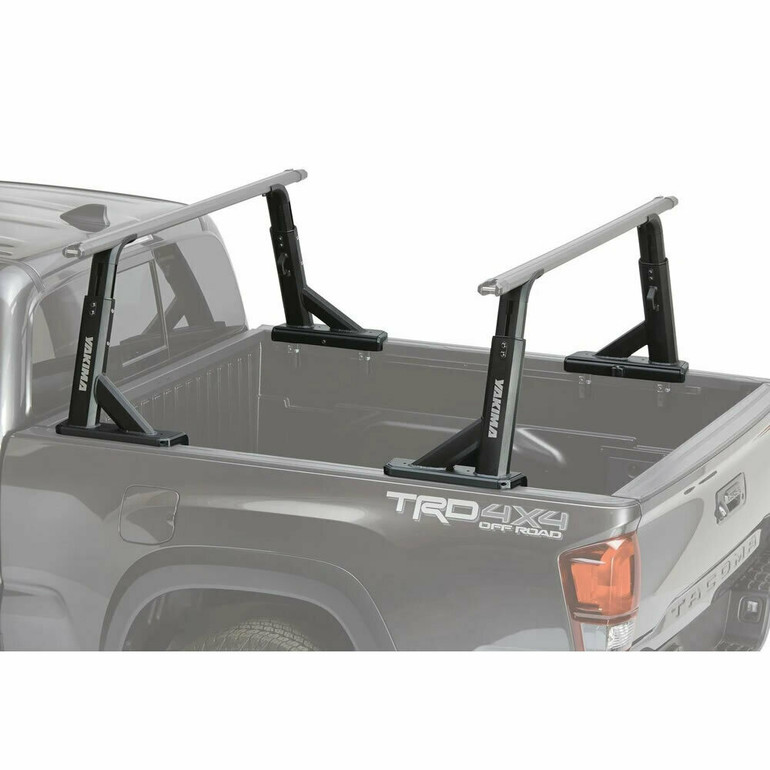

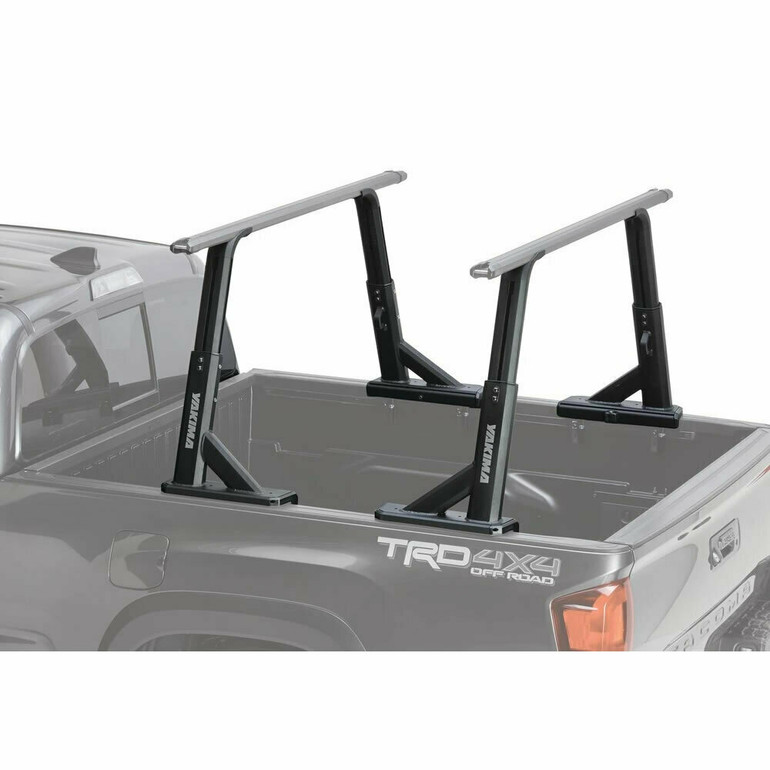

Product details
This Complete System Includes:
4 Towers, 2 Load Bars, and Mounting Hardware
This product bundle has already been pre-fitted and tested for this specific truck.
Once you have this base bed rack, you can now add your gear-specific mounts for bikes, kayaks, cargo boxes, etc.
| OverHaul HD Details: |
|
| HD Bar Details: |
|
TECHNICAL NOTES
OverHaul HD and OutPost HD require use of Bed Track Kit 1 (PN 8001168), for compatibility with factory bed-mounted tracks. Most factory bed-mounted tracks may also be removed to use included J-hook mounting hardware. Without Bed Track Kit 1, OverHaul may not fully adjust front to rear.
BASE RACK

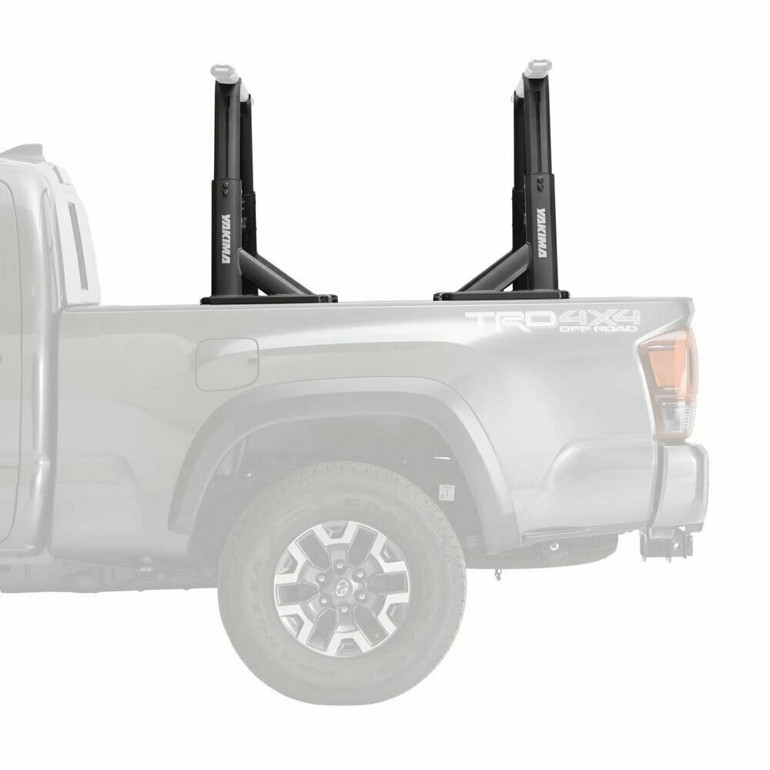

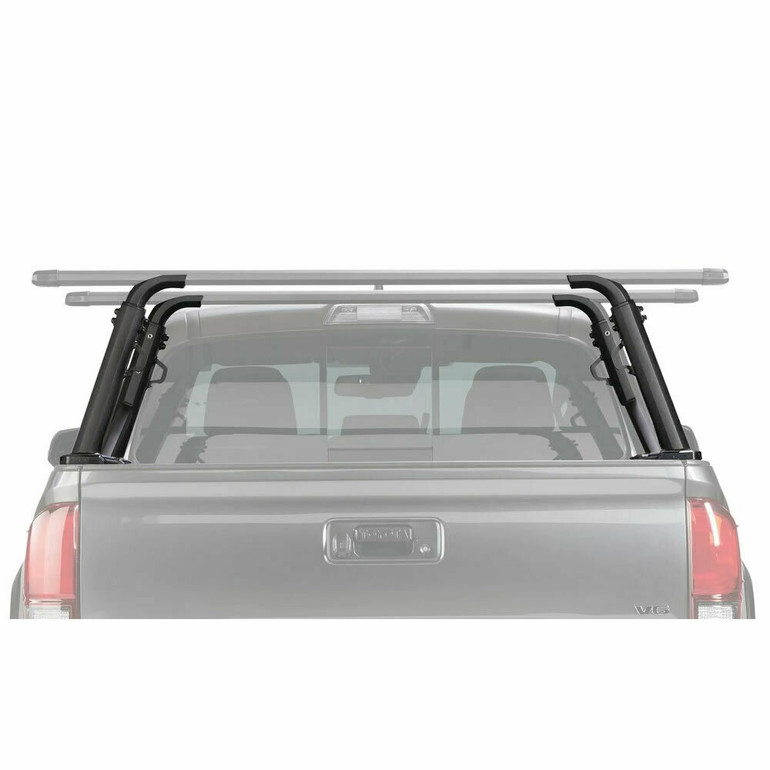

TOWER: OverHaul HD (Towers Only)
CROSSBAR: HD Bar Large (68")
MINIMUM BAR SIZE: Large
MEASUREMENTS - Short Bed
M4MAX: 55 "
WEIGHT LIMIT: 498 lbs
MEASUREMENTS - Standard Bed
M4MAX: 67 1/4 "
WEIGHT LIMIT: 498 lbs
MEASUREMENTS - Long Bed
M4MAX: 84 3/4 "
WEIGHT LIMIT: 498 lbs
NOTES
id
Note
100
ShowDown requires 3”-6” of crossbar protruding beyond your towers to safely clear the side of your vehicle. Your vehicle may require a crossbar larger than the recommended minimum to achieve adequate side clearance.
109
Always be sure to tie down your SUP as per instructions. SupPup and SupDawg require using nose tie down strap.
118
For use with with your LockNLoad platform, this application requires 2 pairs of LockNLoad Crossbar Clamps PN 8005039 with a maximum weight rating of 220lbs.
164
OffGrid Md and LoadWarrior baskets require an extension to fit your vehicle.
191

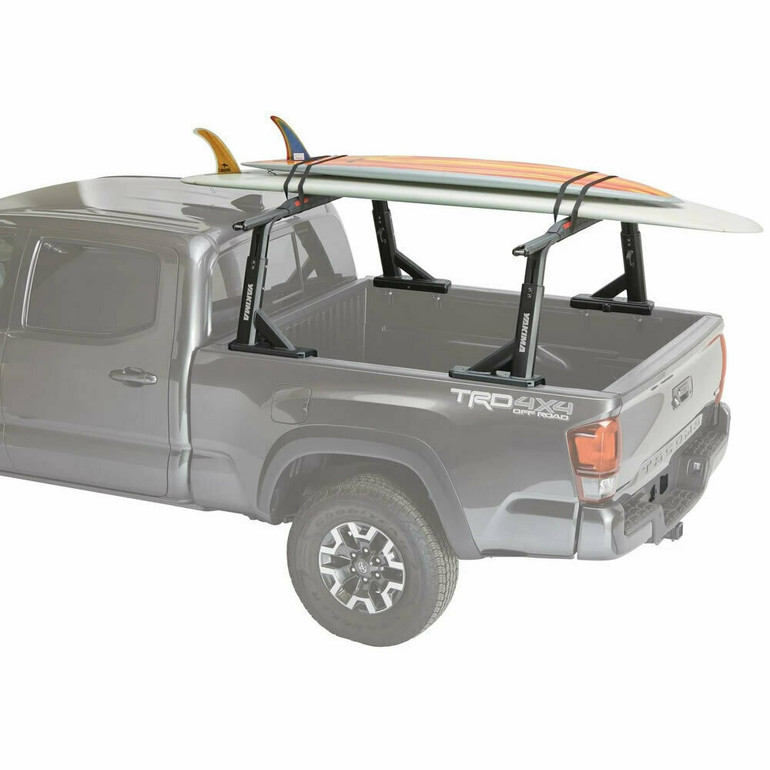

Limited to 2 surf/sail/paddleboards. Boards must be stacked - NEVER carry side-by-side.
307

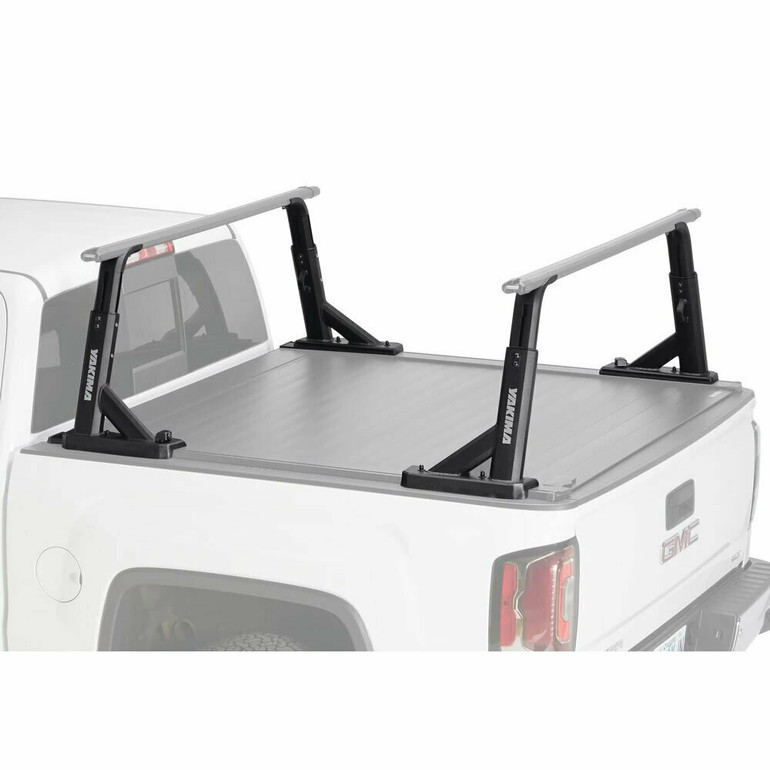

The factory tonneau cover will need to be removed to install this product.
320
OverHaul HD and OutPost HD require use of Bed Track Kit 1 (PN 8001168), for compatibility with factory bed-mounted tracks. Most factory bed-mounted tracks may also be removed to use included J-hook mounting hardware.
321
Remove all factory bed mounted accessories prior to installation of your Yakima truck bed system.
604
RoadShower SM and MD can accommodate crossbar spreads of 24” – 50”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
605
On some short bed trucks, you may not be able to install cab-side SkyRise rainfly poles.
607
RoadShower LG can accommodate crossbar spreads of 32” - 78”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
