2017-2022 Ford Super Duty | Yakima OverHaul HD Complete Truck Bed Rack

2017-2022 Ford Super Duty | Yakima OverHaul HD Complete Truck Bed Rack | Towers & Bars

$1,318.90

Product details

Description
Shipping Information
Custom Tab
Technical Information

Description

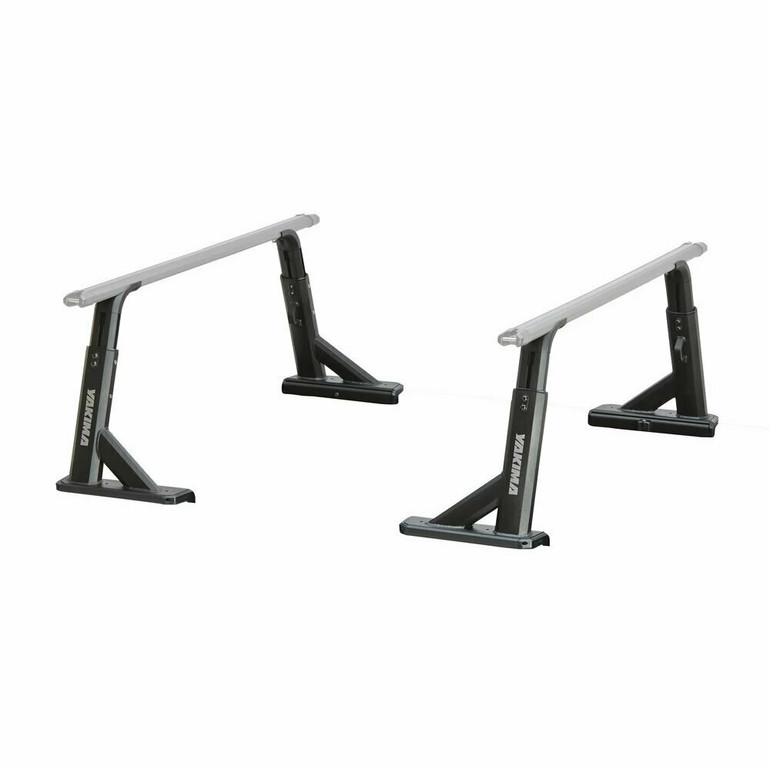

This Complete System Includes:

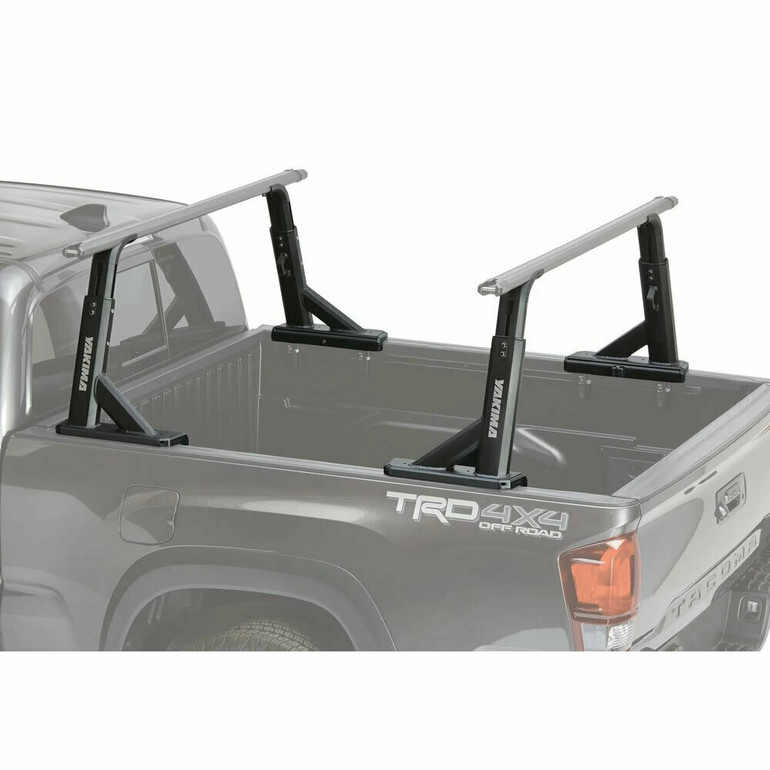

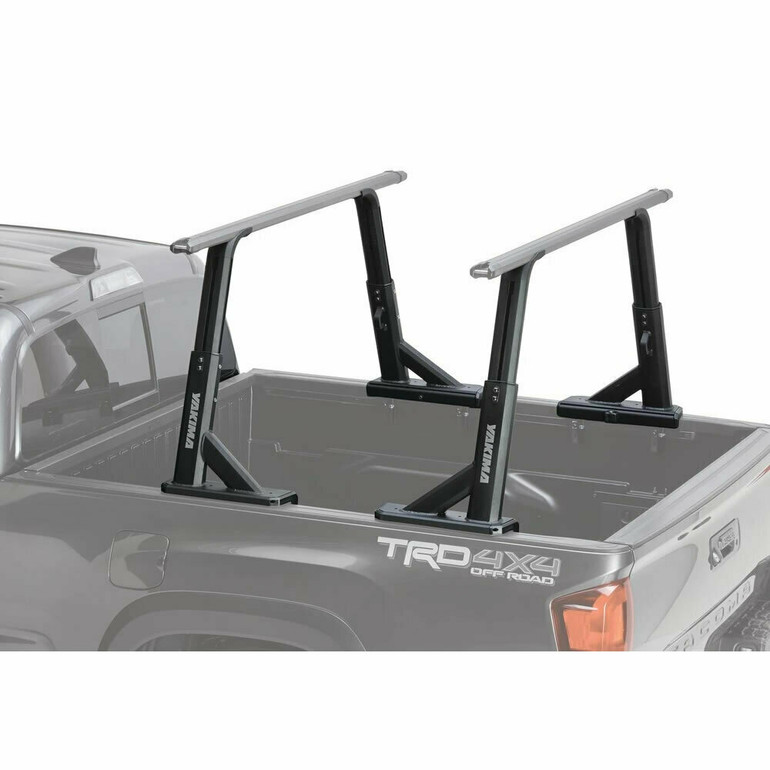

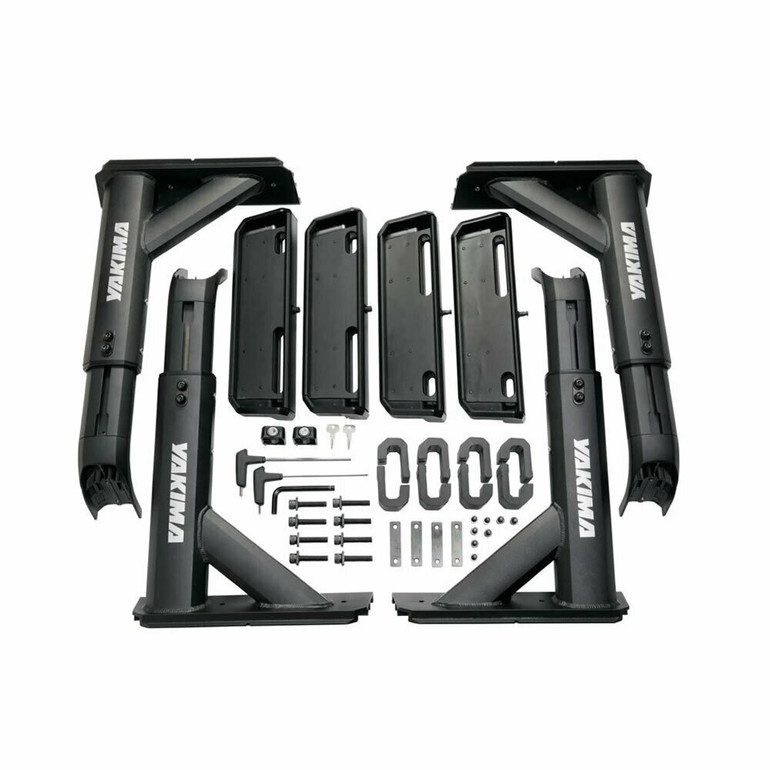

4 Towers, 2 Load Bars, and Mounting Hardware

This product bundle has already been pre-fitted and tested for this specific truck.

Once you have this base bed rack, you can now add your gear-specific mounts for bikes, kayaks, cargo boxes, etc.

OverHaul HD Details:

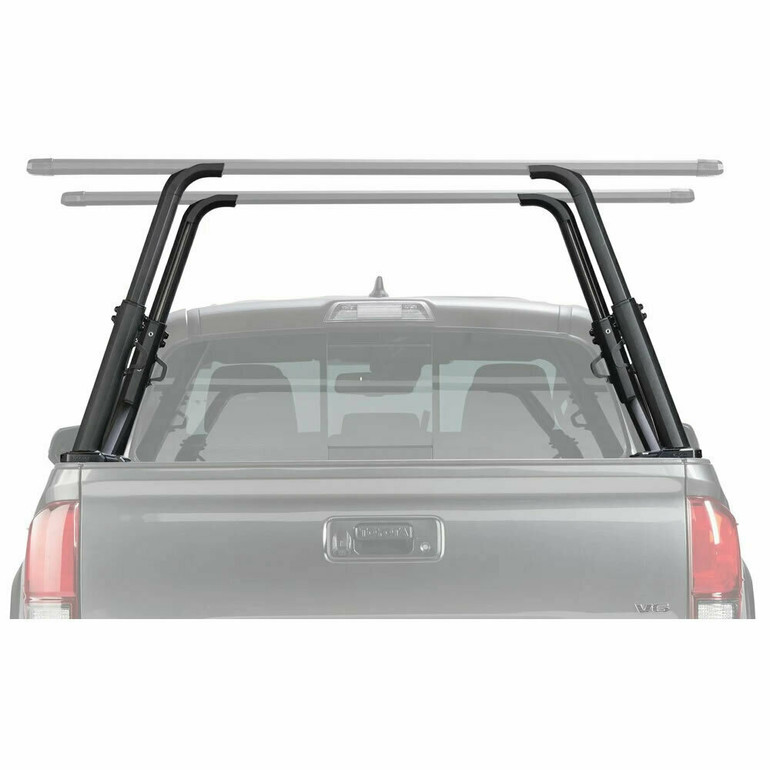

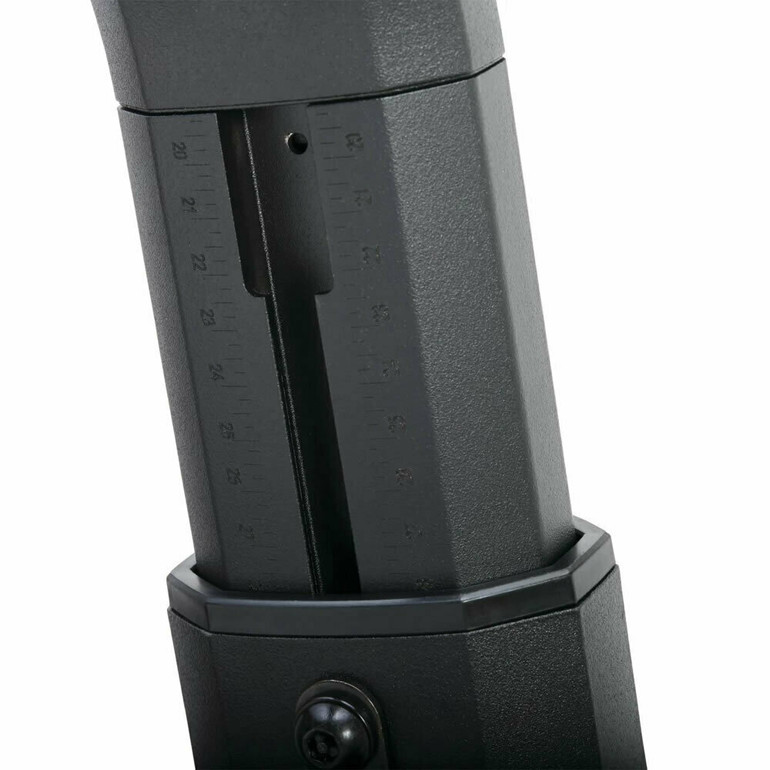

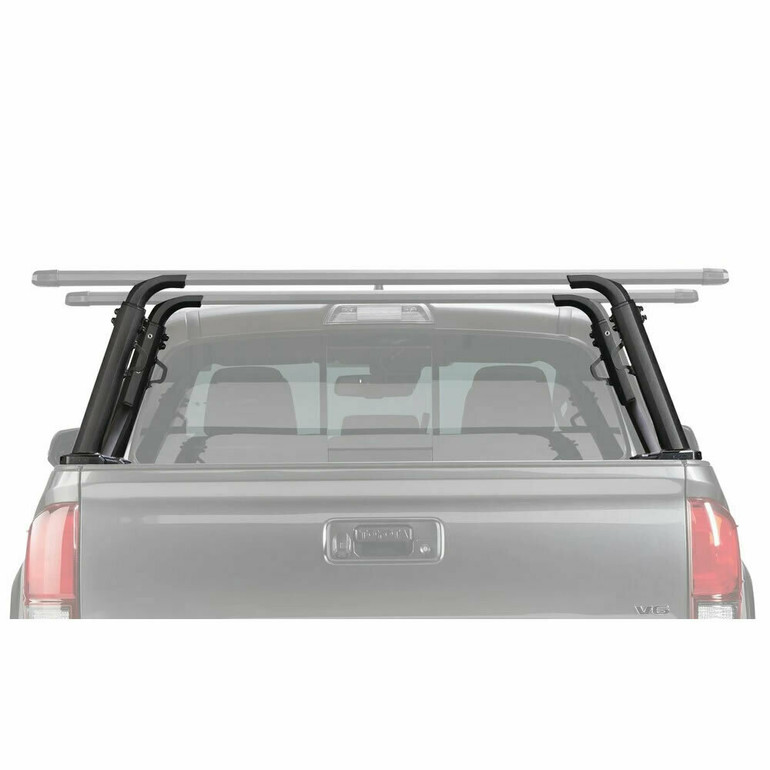

Adjustable height from 19–30" to create custom set-ups for maximum utility and versatility
Maximum on-road rating of 500 lbs.
Maximum off-road rating of 300 lbs.

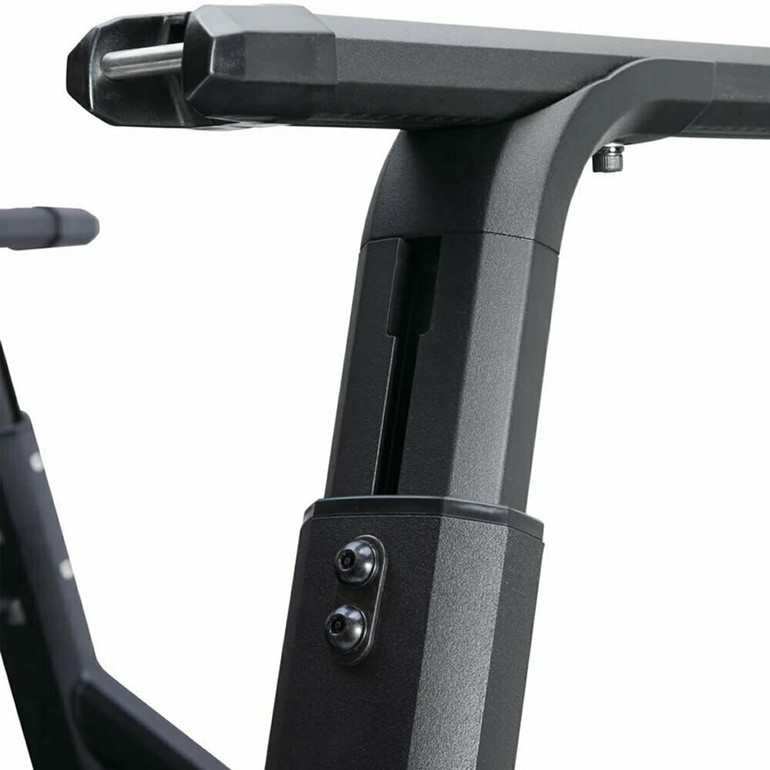

Easy on-off placement in minutes with our patent-pending QuickChange™ rack attachment
Designed and tested for all common truck beds using our BedGrip™ clamp design,
Additional required kits needed for tracked beds (Track Kit 1) and select tonneau covers (Tonneau Kit 1)
Built to last with engineered aluminum construction and a durable powder-coat finish

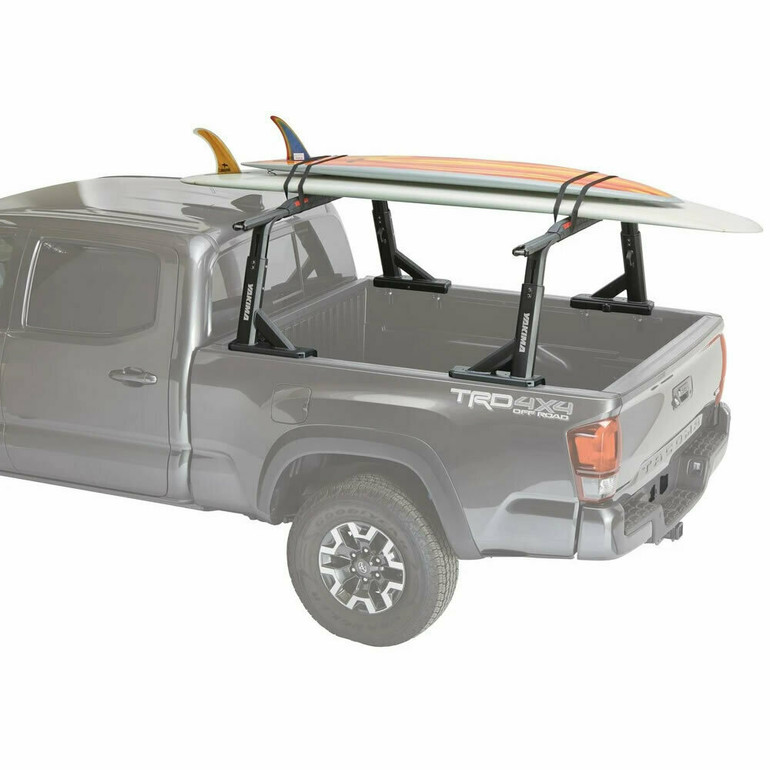

Compatible with all Yakima mounts to carry kayaks, surfboards, bikes, rooftop tents, lumber and more

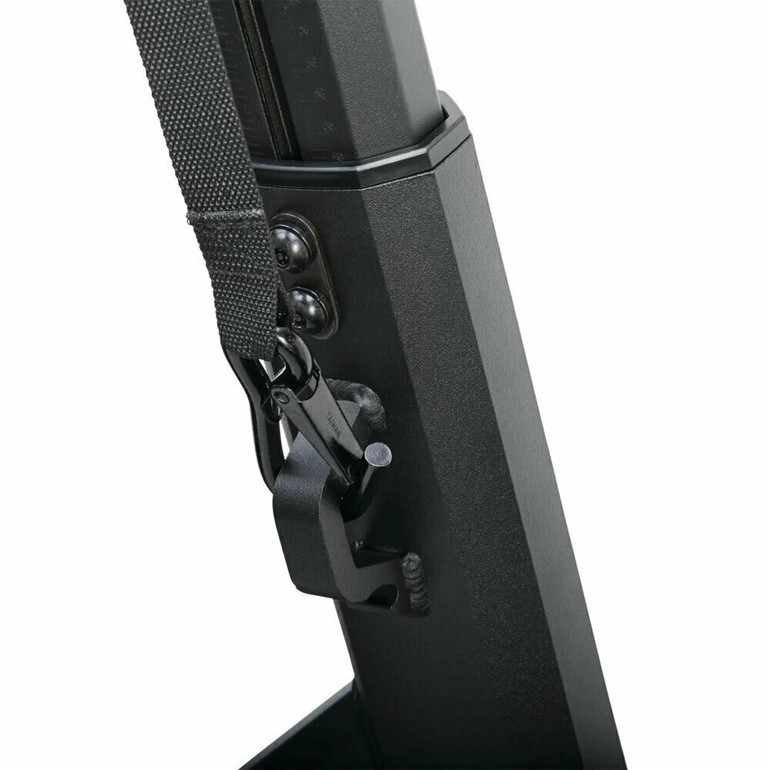

Integrated tie-down points help easily secure any load
T-slot attachments make adding gear mounts and accessories fast—and simple
Integrated SKS (Same Key System) locks to secure your rack system to the truck bed

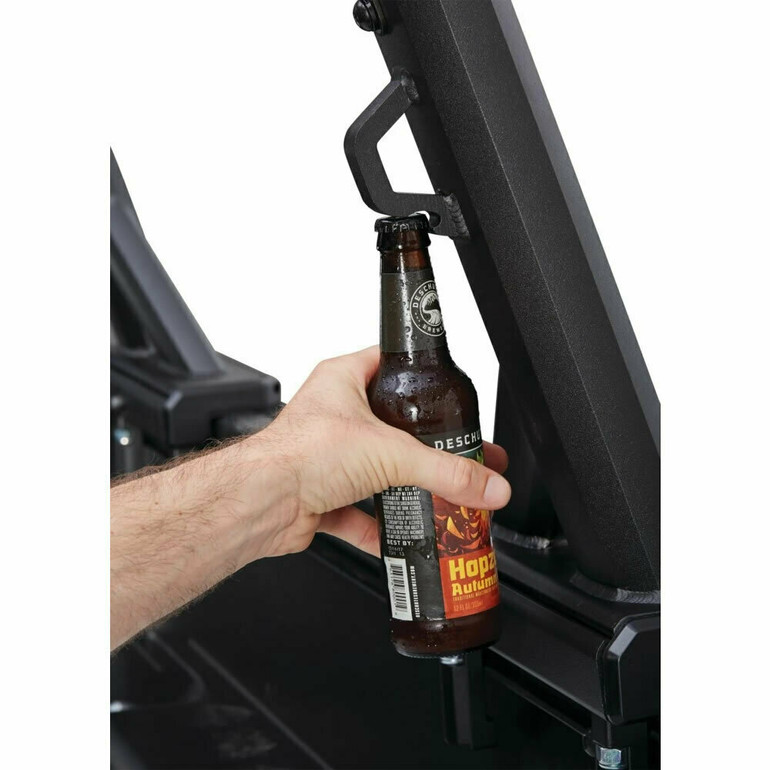

Built-in bottle opener—cheers!

HD Bar Details:

Strong, lightweight aluminum construction handles heavy loads—great for rooftop tents
Integrated tie-down points on endcaps make it easy to secure gear
T-slots top and bottom to easily add compatible Yakima gear mounts
Includes rubber infill for top T-slot for load protection and wind noise reduction
Built to last—and look good doing it—with a durable black powder-coat finish

Shipping Information

Custom Tab

Technical Information

BASE RACK

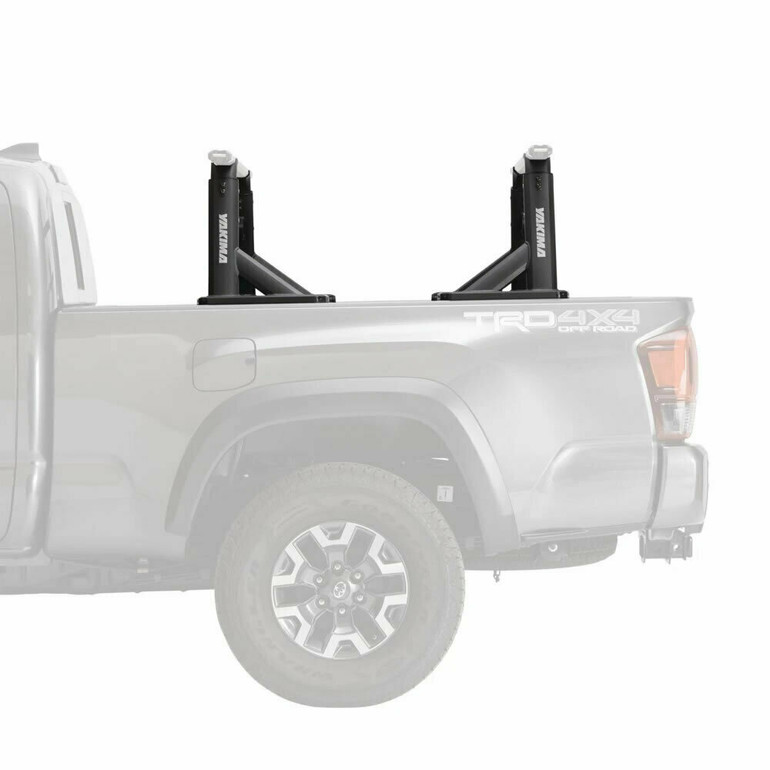

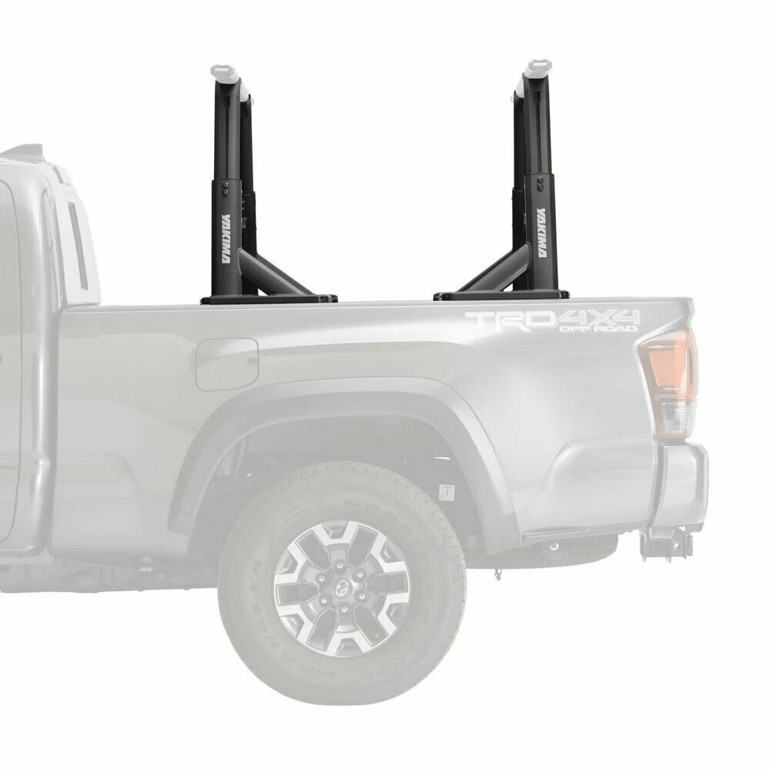

TOWER: OverHaul HD (Towers Only)
CROSSBAR: HD Bar Large (68")
MINIMUM BAR SIZE: Large

MEASUREMENTS - Standard Bed
M4MAX: 70 "
WEIGHT LIMIT: 500 lbs

MEASUREMENTS - Long Bed
M4MAX: 88 "
WEIGHT LIMIT: 498 lbs

Instruction Manuals >

NOTES

Note

100

ShowDown requires 3”-6” of crossbar protruding beyond your towers to safely clear the side of your vehicle. Your vehicle may require a crossbar larger than the recommended minimum to achieve adequate side clearance.

109

Always be sure to tie down your SUP as per instructions. SupPup and SupDawg require using nose tie down strap.

122

For use with with your LockNLoad platform, this application requires 3 pairs of LockNLoad Crossbar Clamps PN 8005039 to achieve 330lbs weight limit. 2 pairs of LockNLoad Crossbar Clamps PN 8005039 can be used, with 220lbs weight limit.

164

OffGrid Md and LoadWarrior baskets require an extension to fit your vehicle.

191

Limited to 2 surf/sail/paddleboards. Boards must be stacked - NEVER carry side-by-side.

321

Remove all factory bed mounted accessories prior to installation of your Yakima truck bed system.

604

RoadShower SM and MD can accommodate crossbar spreads of 24” – 50”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.

607

RoadShower LG can accommodate crossbar spreads of 32” - 78”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
