2017-2024 Mazda CX-5 (w/bare roof) Yakima Crossbar Complete Roof Rack

$618.80
Availability:
In Stock unless Struck Through Below; If out, Contact us for ETA: Add'l Sourcing Maybe Avail.
Shipping:
Free Shipping
  • Yakima CoreBar Load Bar - 50" | Set of 2
  • Yakima JetStream SILVER Load Bar - 50" | Set of 2
  • Yakima JetStream BLACK Load Bar - 50" | Set of 2
  • Yakima BaseLine Tower | Set of 4
  • Yakima BaseClips - Set of 2
  • Yakima BaseClips - Set of 2
  • Yakima SKS Lock Cores | Set of 4
Hurry! Only left
Wish List
Braintree

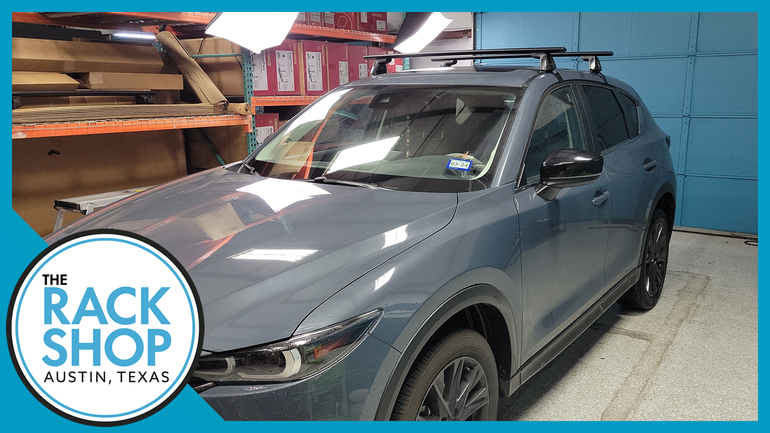

2017-2024 Mazda CX-5 (w/bare roof) Yakima Crossbar Complete Roof Rack

$618.80
✕

2017-2024 Mazda CX-5 (w/bare roof) Yakima Crossbar Complete Roof Rack

$618.80
  • Yakima CoreBar Load Bar - 50" | Set of 2
  • Yakima JetStream SILVER Load Bar - 50" | Set of 2
  • Yakima JetStream BLACK Load Bar - 50" | Set of 2
  • Yakima BaseLine Tower | Set of 4
  • Yakima BaseClips - Set of 2
  • Yakima BaseClips - Set of 2
  • Yakima SKS Lock Cores | Set of 4

Product details

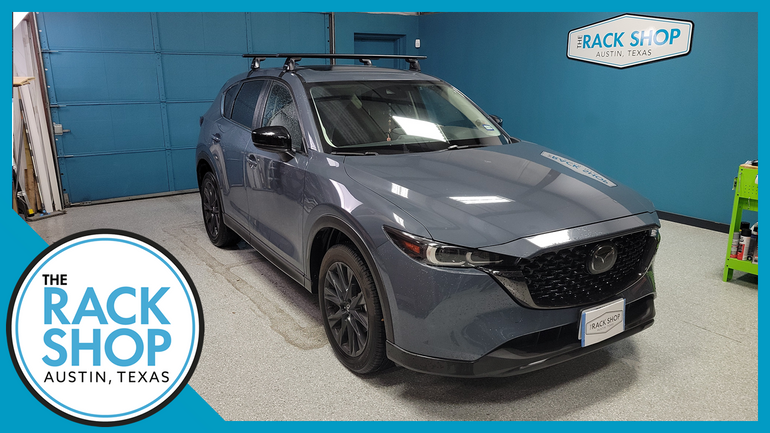

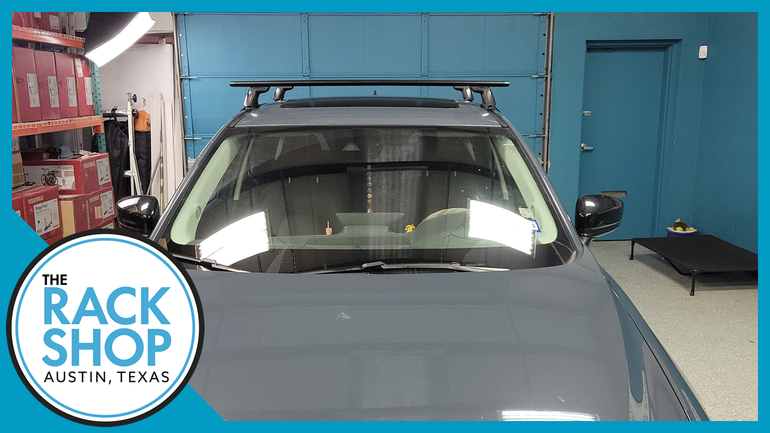

This product bundle has already been pre-fitted and tested for this specific vehicle with a naked/bare roof or bypassing other mounting options in rare situations.

What's Included: 4 Yakima BaseLine Towers, 2 Load Bars (of your choice), and vehicle specific BaseClip Sets.

Roof racks made simple: You need 2 load bars, 4 towers for a base roof rack, and BaseClip sets.

Once you have your base roof rack, you can now add your gear-specific mounts for bikes, kayaks, cargo boxes, etc.

Since the towers are predefined, you only need to choose which load bars best suit your needs. The table below will give you a quick rundown on the differences.

Our best-selling bar is the JetStream bar for its noise reduction, aero efficiencies, and accessory mounting versatility. See below for more details.

WHICH BARS DO I CHOOSE?

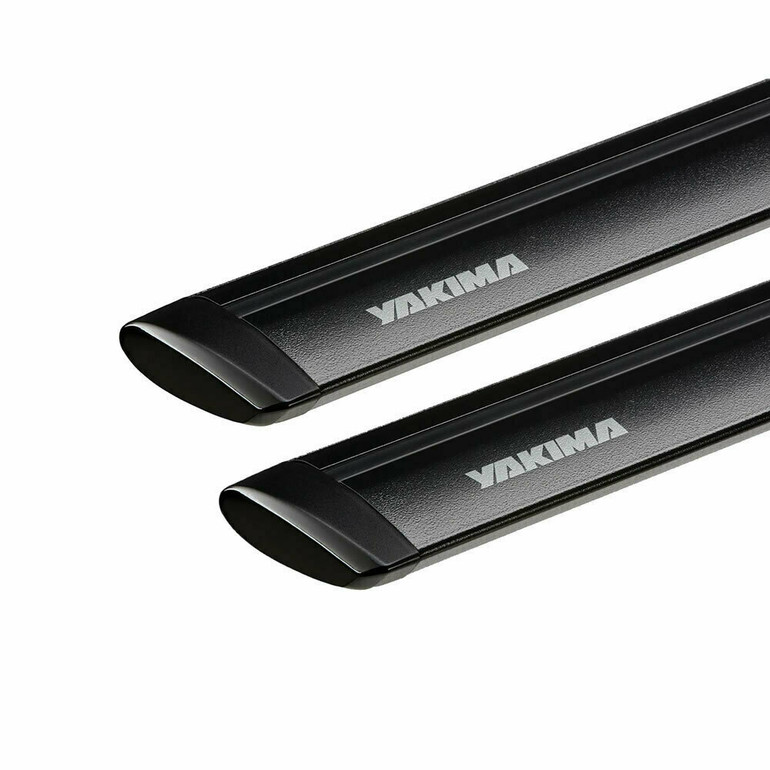

JetStream Load Bars (Black):

- High performance aluminum teardrop shape
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise

Wind Noise:




JetStream Load Bars (Black):

- Internal support adds serious strength
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction

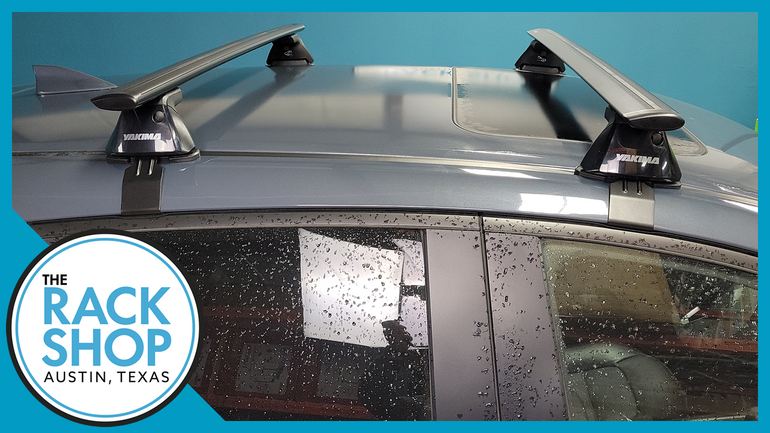

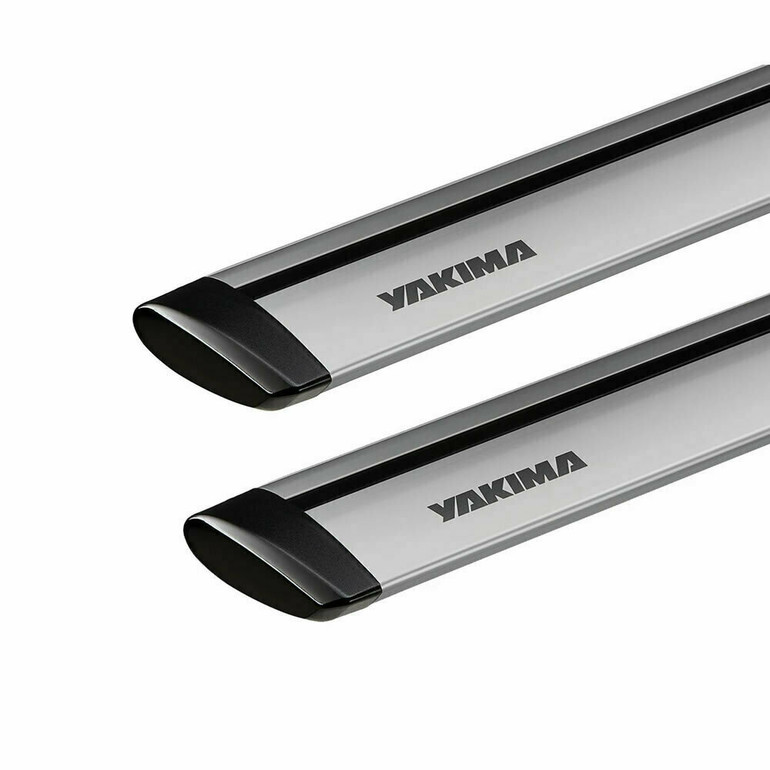

JetStream Load Bars (Silver):

- High performance aluminum teardrop shape
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise

Wind Noise:



JetStream Load Bars (Silver):

- Internal support adds serious strength
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction

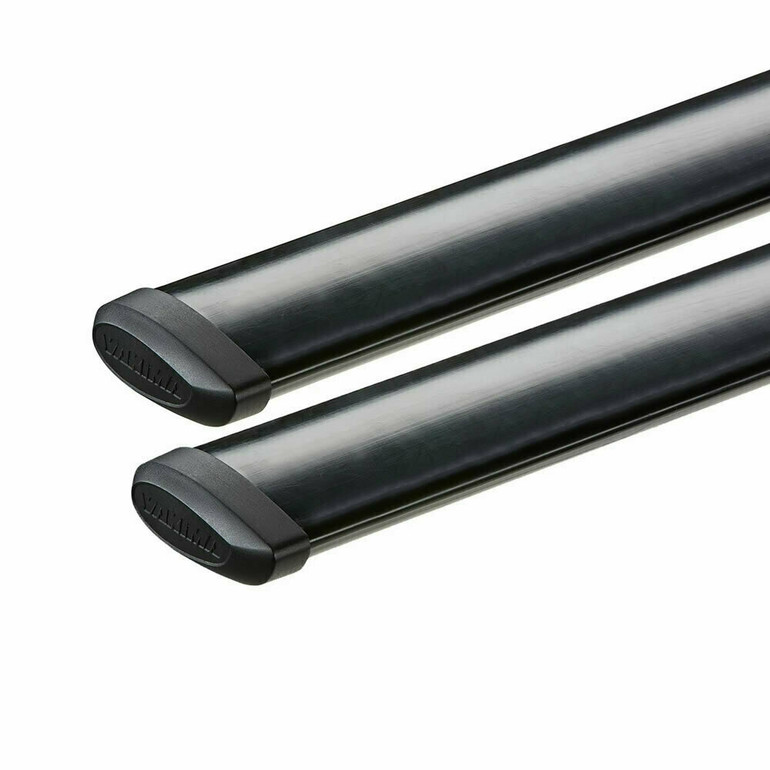

CoreBar Load Bars:

- High performance teardrop shape
- Roll-formed galvanized steel
- Vinyl wrapped for corrosion resistance

Wind Noise:





CoreBar Load Bars:

- Great balance of aerodynamics and cost savings.
- Proven load-bearing performance

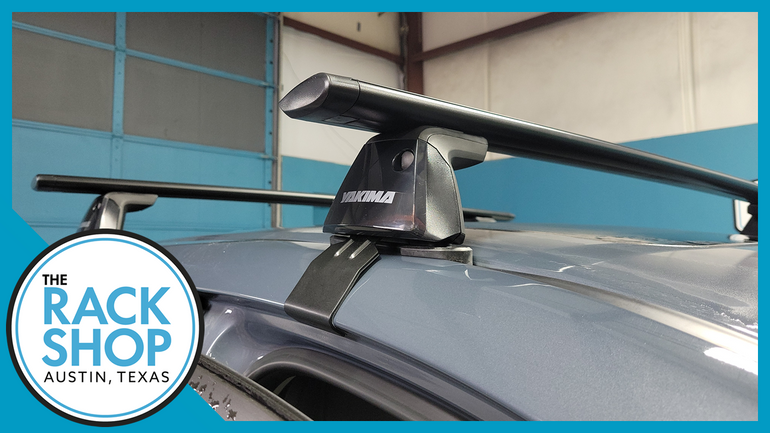

BaseLine Towers:

- Secure, easy-to-use tower specifically designed for cars without roof rails or gutters
- Advanced tower architecture is sleek, strong and quiet
- Works with JetStream, CoreBar and RoundBar crossbars
- Tri-axial DropHook™ clip adjustment easily adjusts to a wide range of roof shapes for safe, secure hold
- BarBed™ has 12° of pitch adjustment to optimize tower position and level bars on roofs with curved flush rails
- Easily locks to you vehicle with our SKS system (sold separately)

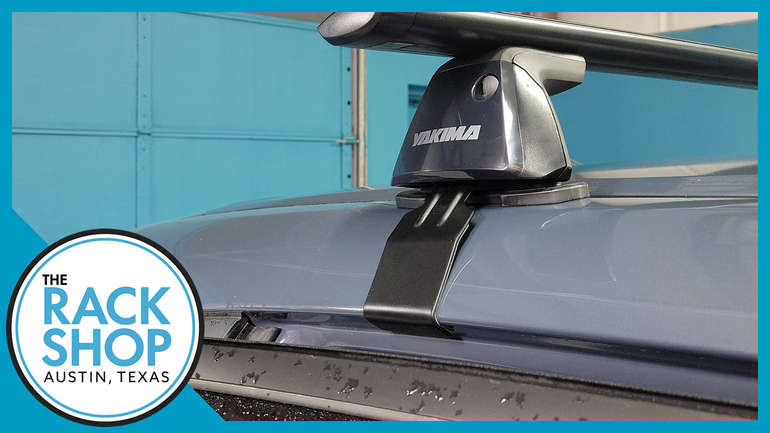

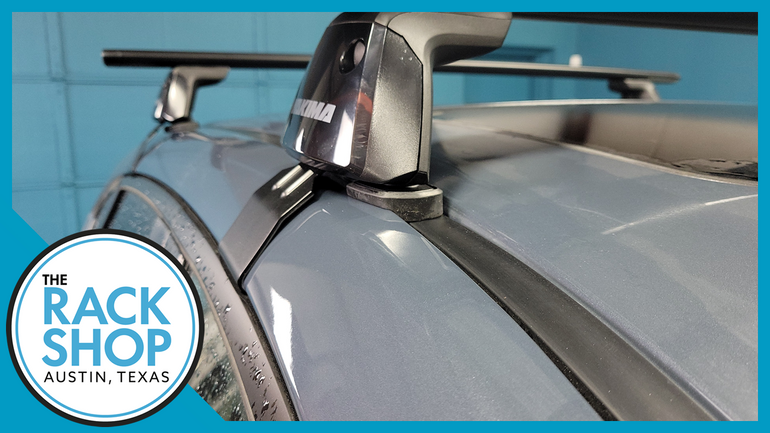

BaseClips:

- Custom clips secure BaseLine Towers to naked roofs
- Wide range of clip shapes means you get a precise, easy to install fit
- Vehicle-specific base pads secure the fit and protect your paint job
- Powder-coated stainless steel construction delivers maximum strength and durability
- Sold in pairs – but don't worry, this bundle has everything you need!

Have questions? Email hello@therackshop.com, call 512-351-9849, or stop by the shop!

The Rack Shop
7200 McNeil Drive, B2
Austin, TX 78729

BASE RACK
TOWER: BaseLine Towers (Set of Four)
FRONT CLIP: BaseClip 130 (B59-5)
REAR CLIP: BaseClip 154 (B74-1)
FAIRING: 40" WindShield
MINIMUM BAR SIZE: Small

MEASUREMENTS
FRONT BAR PITCH (P1): A
FRONT BAR TOE (T1): 1
M1: 37 1/2 "
M2: 10 "
M3: 36 3/4 "
M4: 30 "
REAR BAR PITCH (P2): B
REAR BAR TOE (T2): 2
WEIGHT LIMIT: 165 lbs

NOTES
idNote
2 HullRaiser and HighRoller require one set of MightyMount 39H (PN 8003539) to be compatible with Yakima CoreBar, JetStream bars and FX systems.
5 HullyRollers, MultiMount, and Mako Saddles require one set of MightyMount 39H (PN 8003539) per pair to be compatible with Yakima CoreBar, JetStream bars and FX systems.
14 Using Yakima RoundBars with Yakima BaseLine, TimberLine, SkyLine, RidgeLine, or SightLine towers will require the purchase of RoundBar SL Adapter (PN 8003536) sold separately.
69 Visit https://yakweb-assets.s3.amazonaws.com/HatchClearance.pdf for rear hatch clearance information regarding cargo boxes.
70 Caution! Proper tower balance and tower placement is critical for this installation. Be sure that racks remain centered on the vehicle throughout installation. Take note, when tensioning the system, be sure to alternate between both sides evenly.
81 All loads extending beyond the length of the roof (except cargo boxes) must be secured to both the front and rear of the vehicle, in addition to the rack.
82 SideWinder (Tandem Bike Mount) is compatible with Yakima RoundBar only.
103 Please check your vehicle’s front bar to hatch measurement as well as the ShowBoat 66” instructions, found here http://assets.yakima.com/Product/instructions/8004068/1, to ensure compatibility with your target boat weight, roller extension, and vehicle.
109 Always be sure to tie down your SUP as per instructions. SupPup and SupDawg require using nose tie down strap.
110 If your vehicle is equipped with a sunroof or panoramic glass roof, prior to operation, ensure adequate clearance exists with roof rack and/or accessories installed.
132 Any load/mount extending beyond the rear hatch seam may cause interference.
187 Boa and ForkChop bike mounts will not work on this application due to crossbar spread limitations.
191 Limited to 2 surf/sail/paddleboards. Boards must be stacked - NEVER carry side-by-side.
604 RoadShower SM and MD can accommodate crossbar spreads of 24” – 50”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
611 MajorShady can accommodate crossbar spreads of 26" - 76". The distance from the front or rear clamp to the end of the awning must not be greater than 50". Do not mount greater than 1" outboard of tower.
612 MajorShady is not compatible with Yakima Round Bar or CoreBar.
