Product details
This product bundle has already been pre-fitted and tested for this specific vehicle with raised rails.
What's Included: 4 Yakima TimberLine Towers and 2 Load Bars (of your choice)
Roof racks made simple: You need 2 load bars and 4 towers for a base roof rack.
Once you have your base roof rack, you can now add your gear-specific mounts for bikes, kayaks, cargo boxes, etc.
Since the towers are predefined, you only need to choose which load bars best suit your needs. The table below will give you a quick rundown on the differences.
Our best-selling bar is the JetStream bar for its noise reduction, aero efficiencies, and accessory mounting versatility. See below for more details.
WHICH BARS DO I CHOOSE?

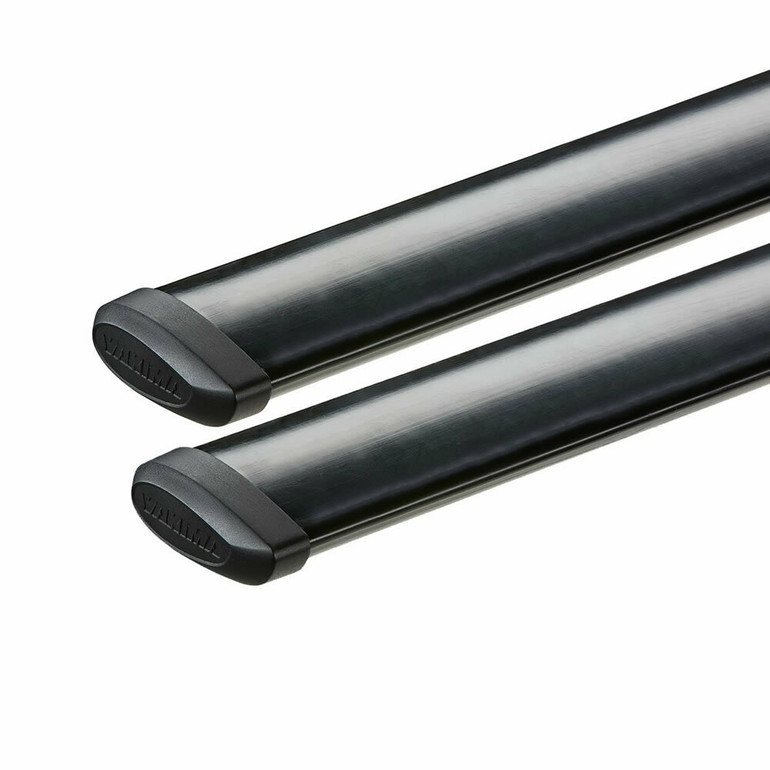

JetStream Load Bars (Black):
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise
Wind Noise:
JetStream Load Bars (Black):
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction

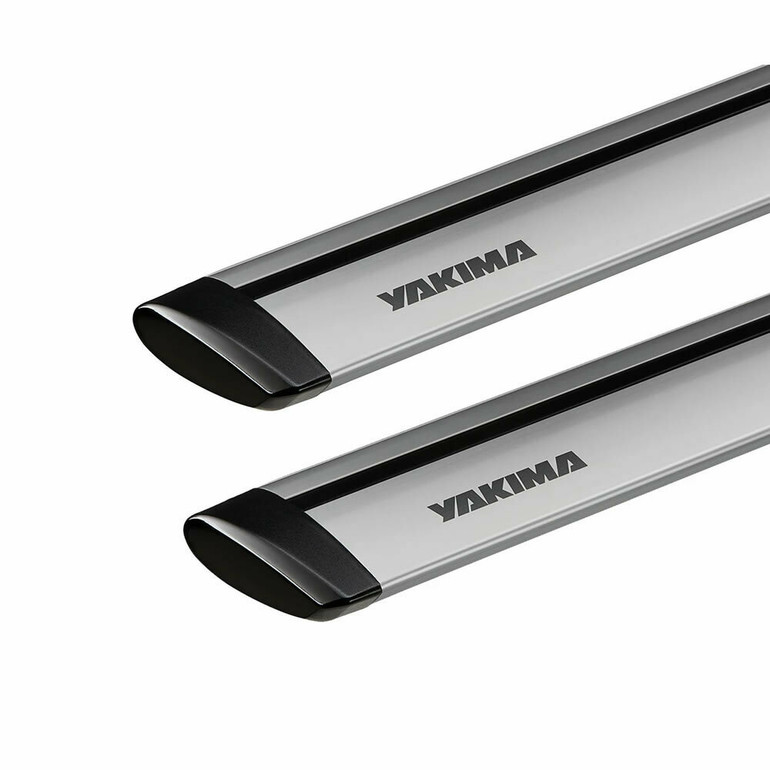

JetStream Load Bars (Silver):
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise
Wind Noise:
JetStream Load Bars (Silver):
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction
CoreBar Load Bars:
- Roll-formed galvanized steel
- Vinyl wrapped for corrosion resistance
Wind Noise:
CoreBar Load Bars:

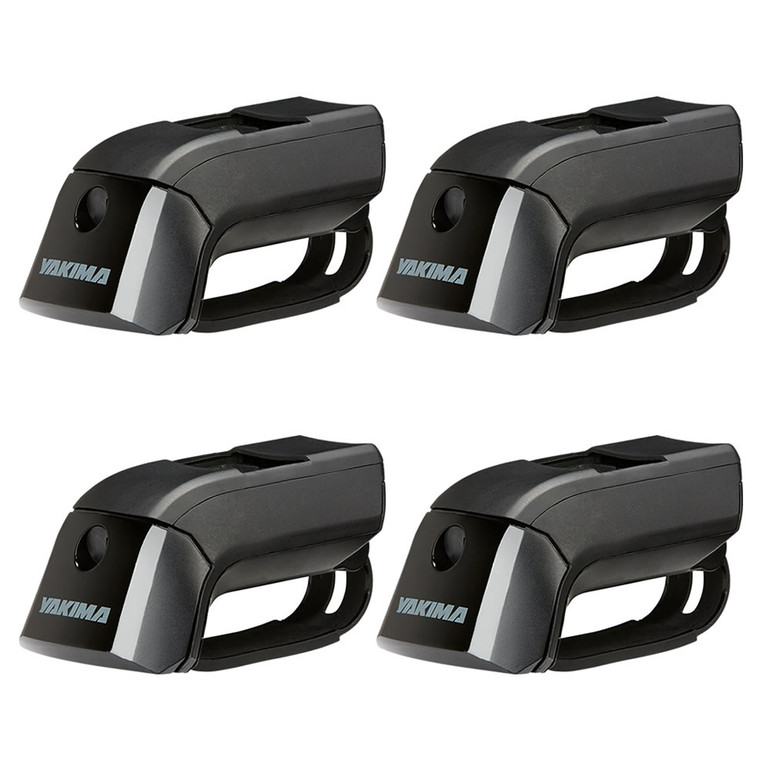

TimberLine Towers:
- Advanced tower architecture is sleek, strong and quiet
- Works with JetStream, CoreBar and RoundBar crossbars
- Strong, durable stainless steel strap to accommodates a range of rails
- Maximum load rating of 220lbs (100kg), depending on vehicle and bar rating
- Easily locks to you vehicle with our SKS system (sold separately)
Have questions? Email hello@therackshop.com, call 512-351-9849, or stop by the shop!
The Rack Shop
7200 McNeil Drive, B2
Austin, TX 78729
BASE RACK
TOWER: TimberLine Towers (Set of Four)
FAIRING: 40" WindShield
MINIMUM BAR SIZE: Medium
MEASUREMENTS
M4MAX: 41 3/8 "
FRONT BAR TO HATCH: 58 "
WEIGHT LIMIT: 165 lbs
NOTES
- HullRaiser and HighRoller require one set of MightyMount 39H (PN 8003539) to be compatible with Yakima CoreBar and JetStream bars.
- HullyRollers, MultiMount, and Mako Saddles require one set of MightyMount 39H (PN 8003539) per pair to be compatible with Yakima CoreBar and JetStream bars.
- Using Yakima RoundBars with Yakima BaseLine, TimberLine, SkyLine or RidgeLine towers will require the purchase of RoundBar SL Adapter (PN 8003536) sold separately.
- Caution! when open, sunroof or panoramic roof may interfere with some accessories.
- Visit https://yakweb-assets.s3.amazonaws.com/HatchClearance.pdf for rear hatch clearance information regarding cargo boxes.
- All loads extending beyond the length of the roof (except cargo boxes) must be secured to both the front and rear of the vehicle, in addition to the rack.
- SideWinder (Tandem Bike Mount) is compatible with Yakima RoundBar only.
- ShowDown requires crossbars one size larger than the recommended minimum for adequate vehicle side clearance on this application.
- Please check your vehicle’s front bar to hatch measurement as well as the ShowBoat 66” instructions, found here http://assets.yakima.com/Product/instructions/8004068/1, to ensure compatibility with your target boat weight, roller extension, and vehicle.
- If crossbar spread is between 24” and 29”, length of canoe must be 14 feet or less.
- Always be sure to tie down your SUP as per instructions. SupPup and SupDawg require using nose tie down strap.
- If your vehicle is equipped with a sunroof or panoramic glass roof, prior to operation, ensure adequate clearance exists with roof rack and/or accessories installed.
- Any load/mount extending beyond the rear hatch seam may cause interference.
- Limited to 2 surf/sail/paddleboards. Boards must be stacked - NEVER carry side-by-side.
- RoadShower SM and MD can accommodate crossbar spreads of 24” – 50”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
- RoadShower LG can accommodate crossbar spreads of 32” - 78”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
