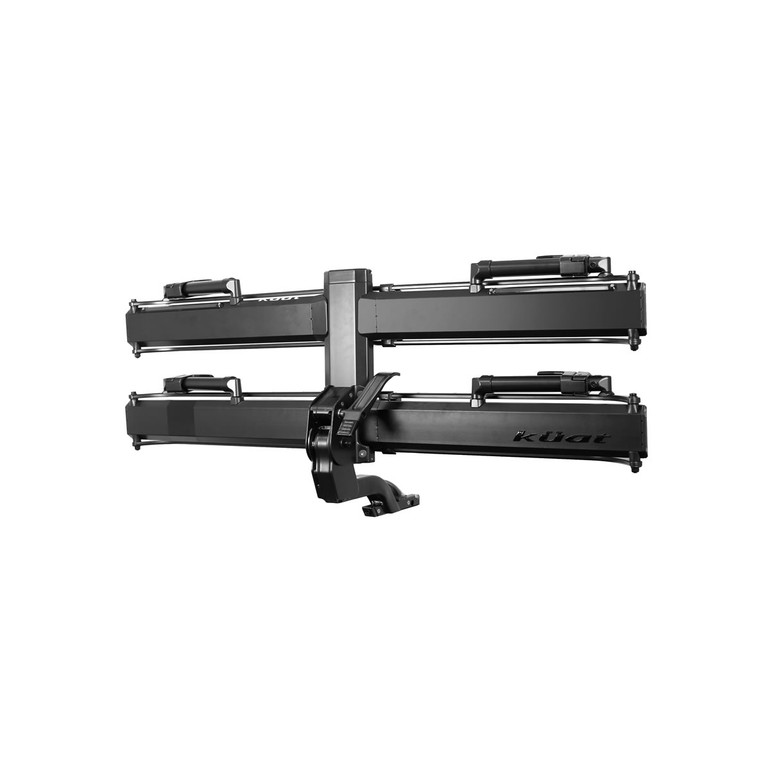

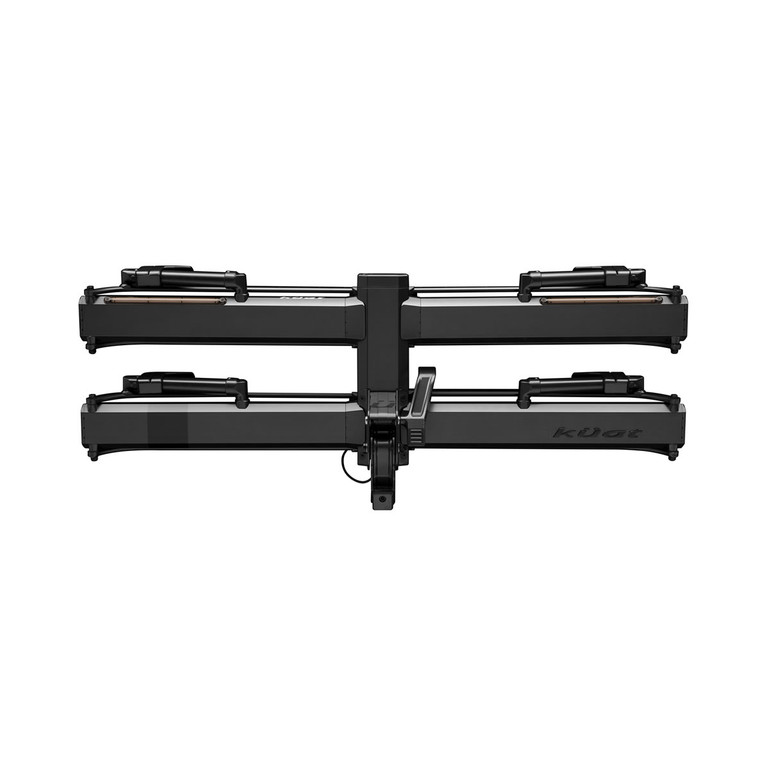

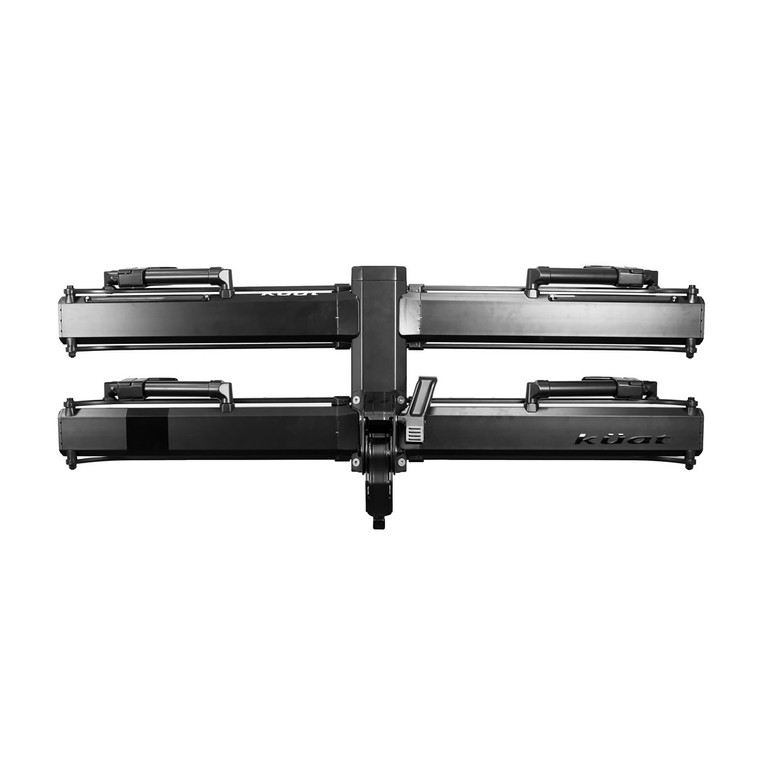

Kuat Piston® Pro X Bike Hitch Rack

The Kuat Piston® Pro X is the flagship rack in the Piston lineup, combining premium materials, innovative engineering, and integrated lighting for the ultimate bike transport system. Genuine Kashima-coated hydro-pneumatic piston arms make loading and unloading bikes smooth and effortless, while the touchless tire arms secure bikes without contacting the frame.

Designed for both everyday riders and serious cyclists, the Piston Pro X features integrated LED taillights that synchronize with your vehicle for improved rear visibility and safety. Durable all-metal construction, corrosion-resistant hardware, and premium coatings ensure the rack performs reliably through years of use.

With expandable capacity, industry-leading security features, and Kuat’s patented hitch technology, the Piston Pro X delivers unmatched convenience, protection, and style for transporting your bikes.

Key Features

• Genuine Kashima-coated piston struts for smooth, long-lasting performance
• 99% metal construction built for durability and demanding use
• OneTap™ hydro-pneumatic tire arms for easy bike loading
• No frame contact design protects bike frames

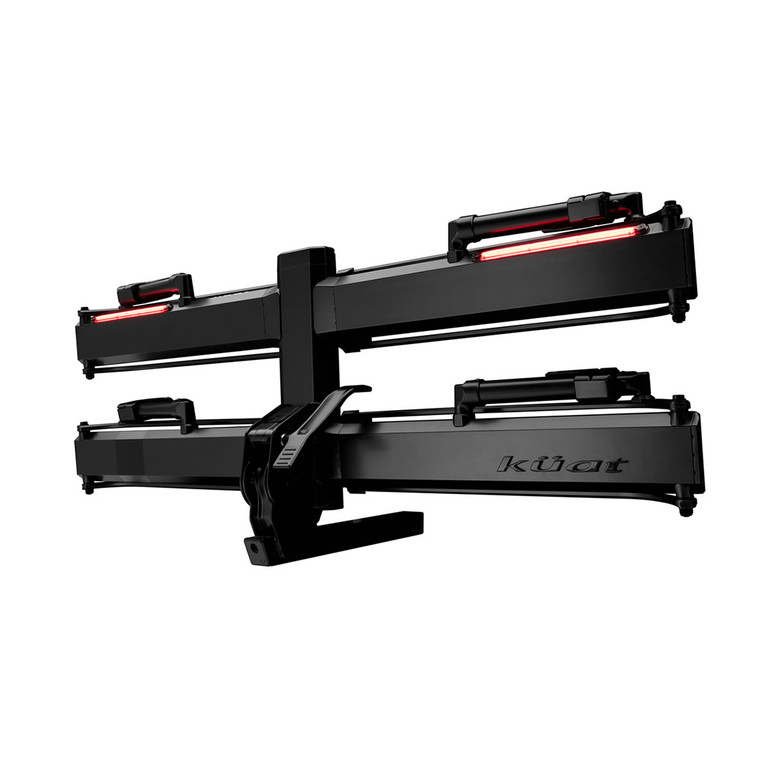

• Integrated LED taillights connect via included 4-pin flat connector
• Magnetic cable clips keep wiring organized and protected
• FastFit™ tool-free wheel chock system for quick adjustments

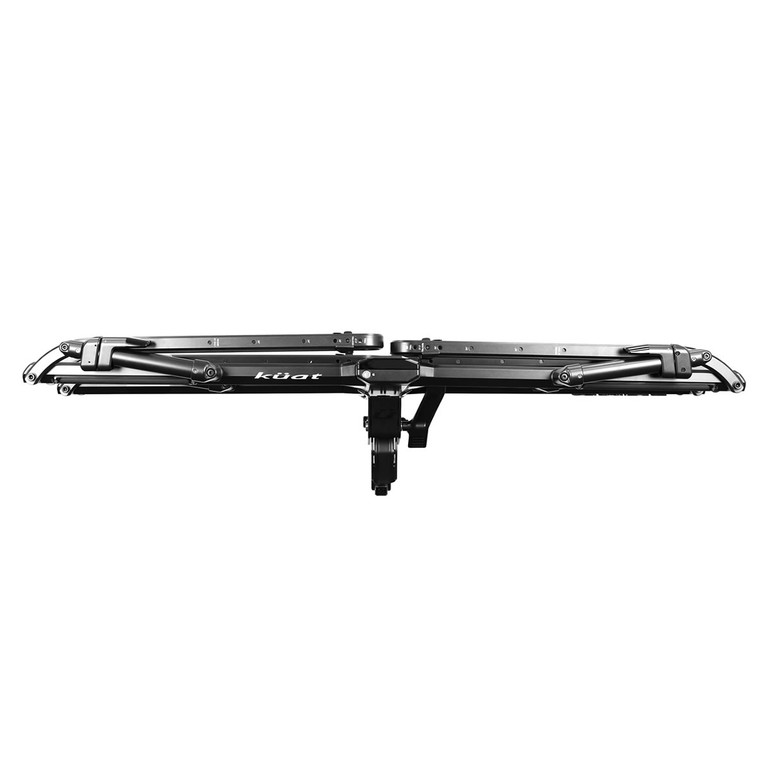

• PedalPivot™ folding system for easy rack positioning
• FlatLock™ hitch cam with tamper-resistant head
• Integrated 12mm high-strand cable lock for bike security
• Stainless steel hitch lock included
• Expandable with optional Piston® Pro X Add-On trays
• Finished with premium Tiger Drylac powder coat
• Backed by Kuat’s No Worries Limited Warranty

Carrying Capacity

• 67 lbs per tray on 2" 2-bike version
• 60 lbs per tray on 1.25" version
• Supports wheelbases up to 53"
• Compatible with tire sizes from 18" – 29"
• Dedicated 2" model can carry up to 4 bikes with optional add-on trays

Vehicle & RV Compatibility

Dedicated 2" 2-Bike Rack ⁽¹⁾

✔ Cars, Trucks, SUVs and Vans
✔ Flat-Towed Vehicles
✔ Travel Trailers
✔ Motorhomes
✔ Fifth-Wheel

*2-bike configurations only without add-ons and without hitch adapters.

1.25" and other 2" configurations ⁽¹⁾⁽²⁾

✔ Cars, Trucks, SUVs and Vans
✔ Flat-Towed Vehicles
✖ Travel Trailers
✖ Motorhomes
✖ Fifth-Wheel

⁽¹⁾ Must be a chassis-mounted hitch receiver.
⁽²⁾ Must be less than 64" distance from the center of the rear axle to the center of the hitch pin hole.

Always check the User Guide and specifications for any change in weight capacity dependent on use. Hitch extenders and adapters should not be used when mounting the rack to an RV. Please refer to Kuat’s RV & Off-road Limitations for more information.

Rack Weight

• 2-Bike, 1.25": 61 lbs
• 2-Bike, 2": 63 lbs
• 3-Bike: 89 lbs
• 4-Bike: 111 lbs

Shipping Weight

• 2-Bike, 1.25": 74 lbs
• 2-Bike, 2": 75 lbs
• 1-Bike Add-On: 34 lbs
• 2-Bike Add-On: 59 lbs

Shipping Dimensions

• 2-Bike: 35" x 28" x 10"
• 1-Bike Add-On: 35" x 14" x 10"
• 2-Bike Add-On: 35" x 23" x 10"
