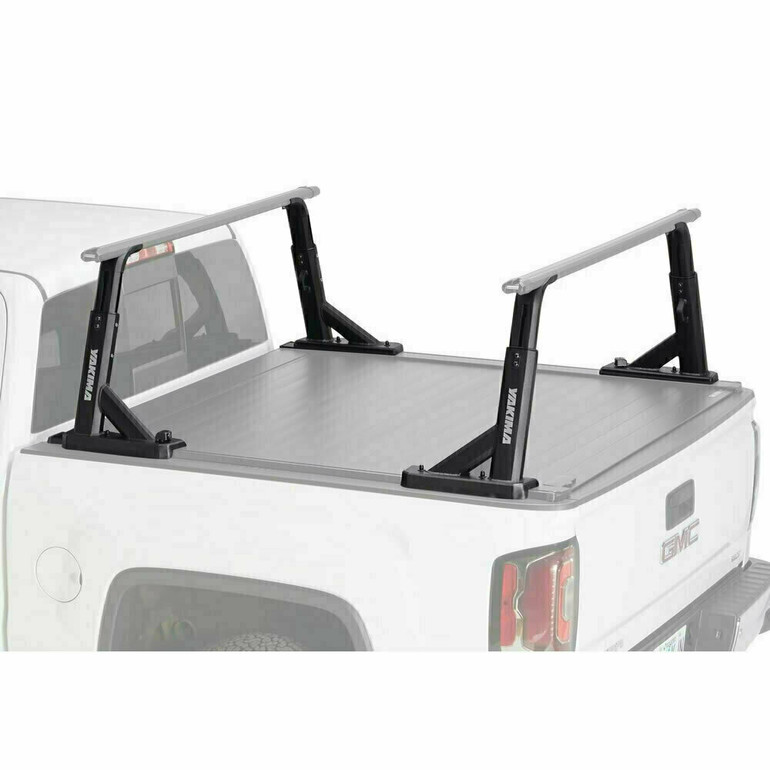

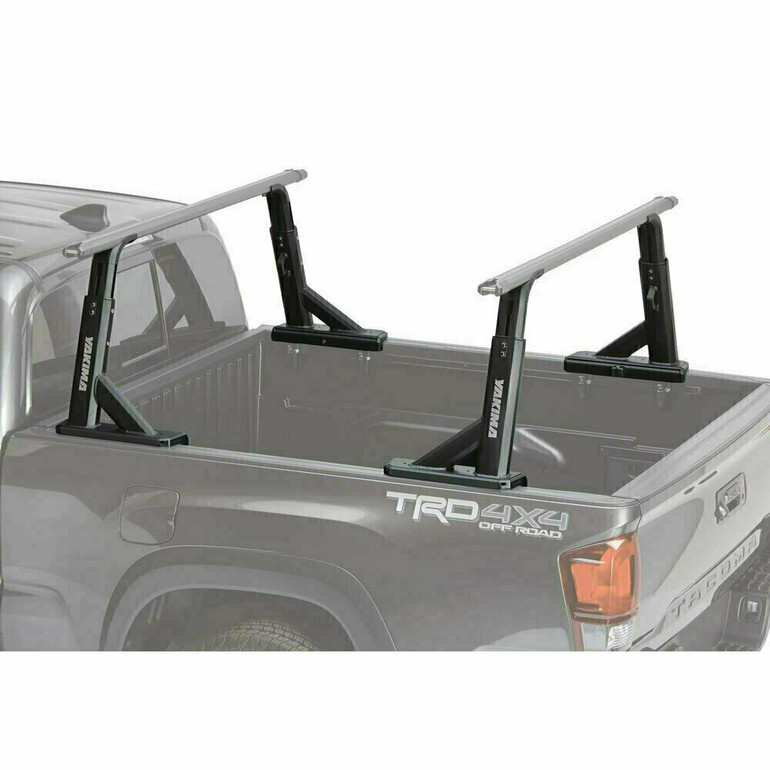

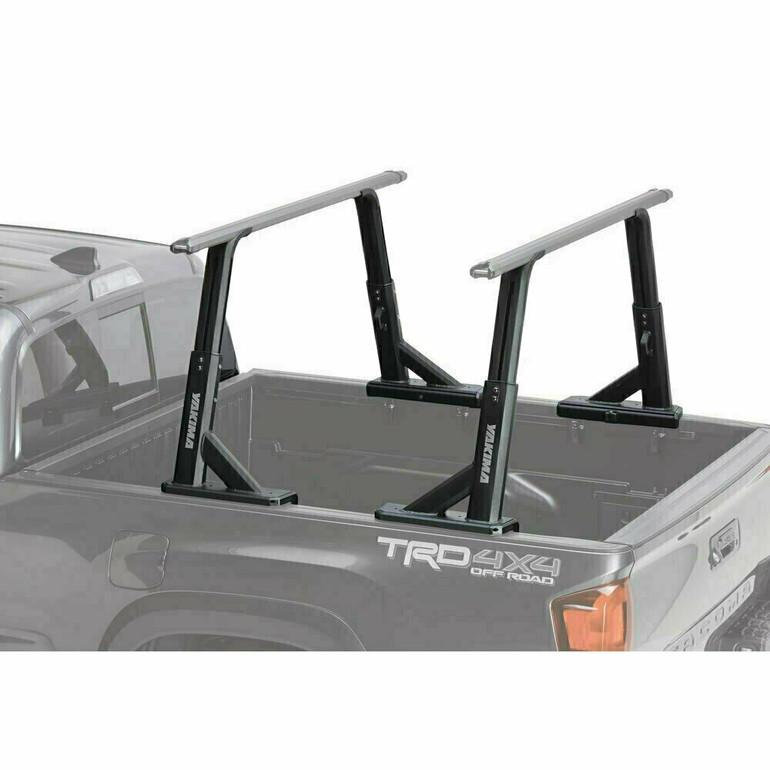

Product details

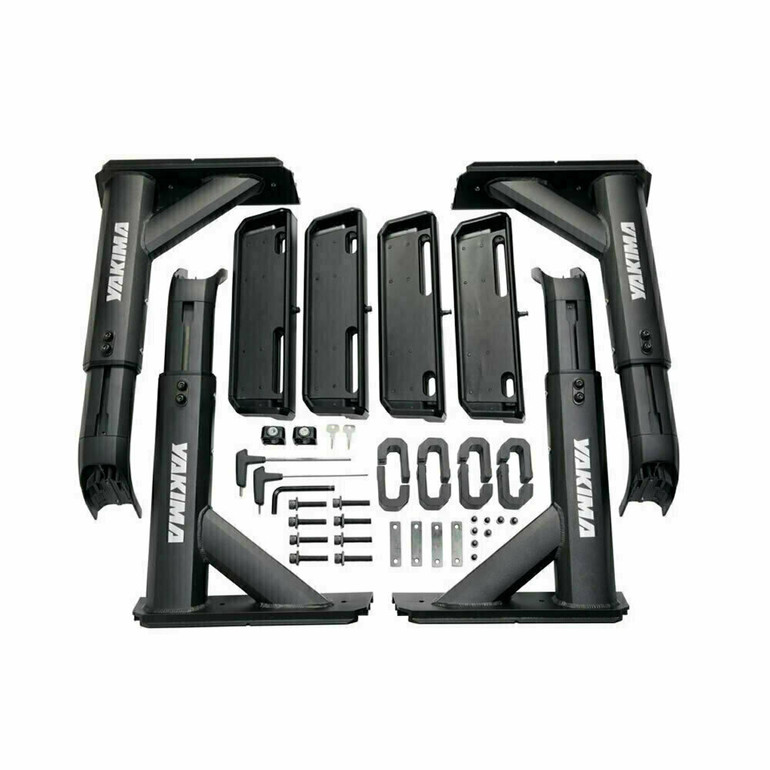

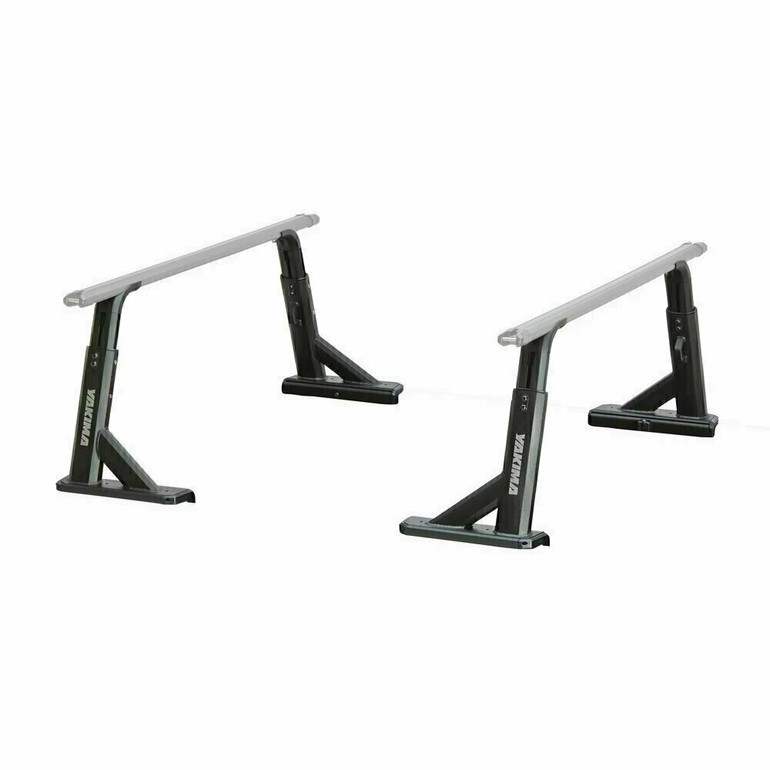

This Complete System Includes:
4 Towers, 2 Load Bars, and Mounting Hardware
This product bundle has already been pre-fitted and tested for this specific truck.

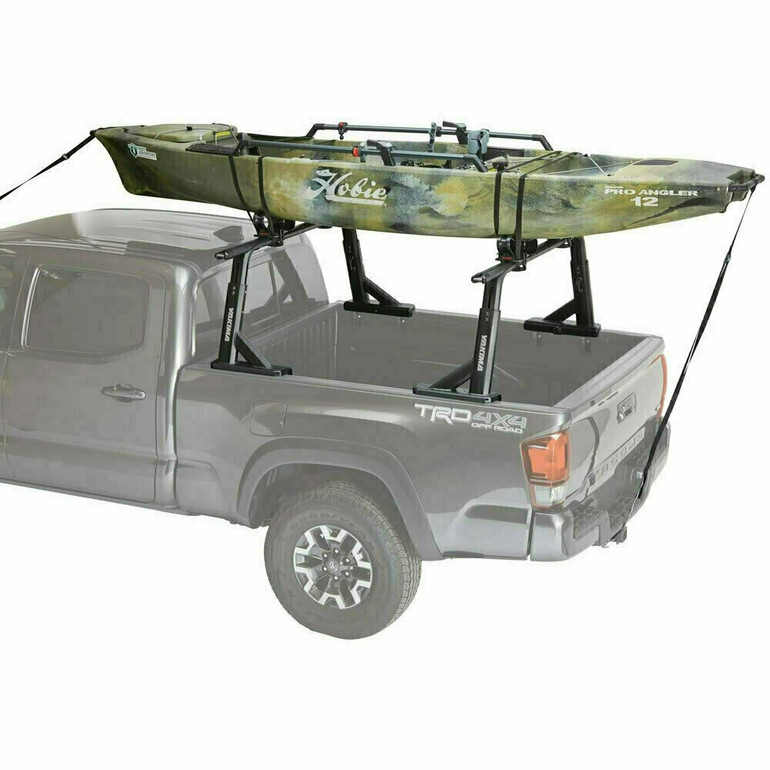

Once you have this base bed rack, you can now add your gear-specific mounts for bikes, kayaks, cargo boxes, etc.
| OverHaul HD Details: |
|
| HD Bar Details: |
|
TECHNICAL NOTES
Requires use of Bed Track Kit 1 (PN 8001168), for compatibility with factory bed-mounted tracks. Most factory bed-mounted tracks may also be removed to use included mounting hardware from the OverHaul/OutPost.
BASE RACK

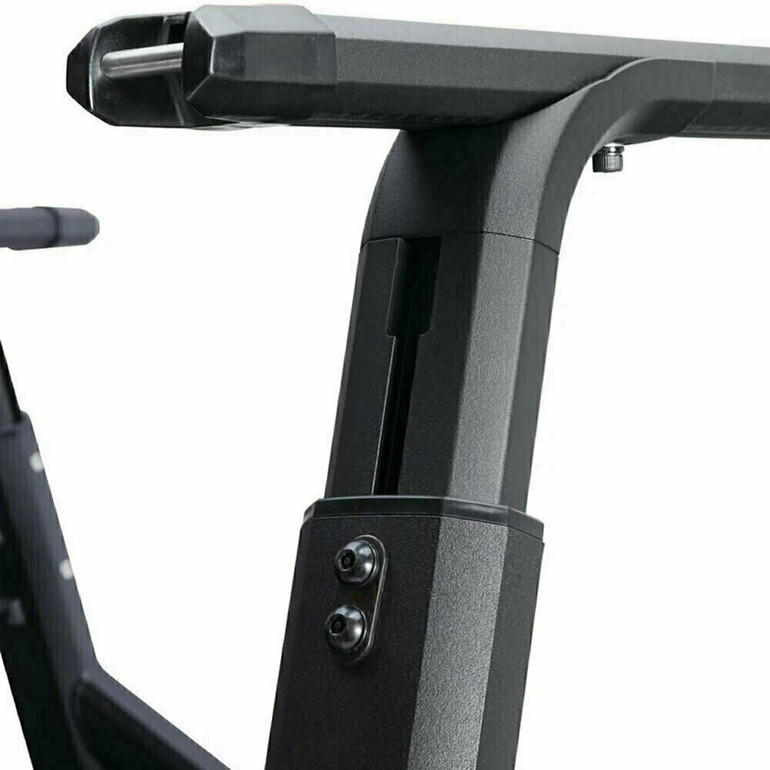

TOWER: OverHaul HD (Towers Only)
CROSSBAR: HD Bar Medium (60")
MINIMUM BAR SIZE: Small
TONNEAU TYPES
RetraxOne XR
RetraxPro XR
Pace Edwards Ultra Groove
MEASUREMENTS
M4MAX: 46 "
WEIGHT LIMIT: 498 lbs
NOTES
- ShowDown requires 3”-6” of crossbar protruding beyond your towers to safely clear the side of your vehicle. Your vehicle may require a crossbar larger than the recommended minimum to achieve adequate side clearance.
- Always be sure to tie down your SUP as per instructions. SupPup and SupDawg require using nose tie down strap.
- For use with with your LockNLoad platform, this application requires 2 pairs of LockNLoad Crossbar Clamps PN 8005039 with a maximum weight rating of 220lbs.
- OffGrid Md and LoadWarrior baskets require an extension to fit your vehicle.

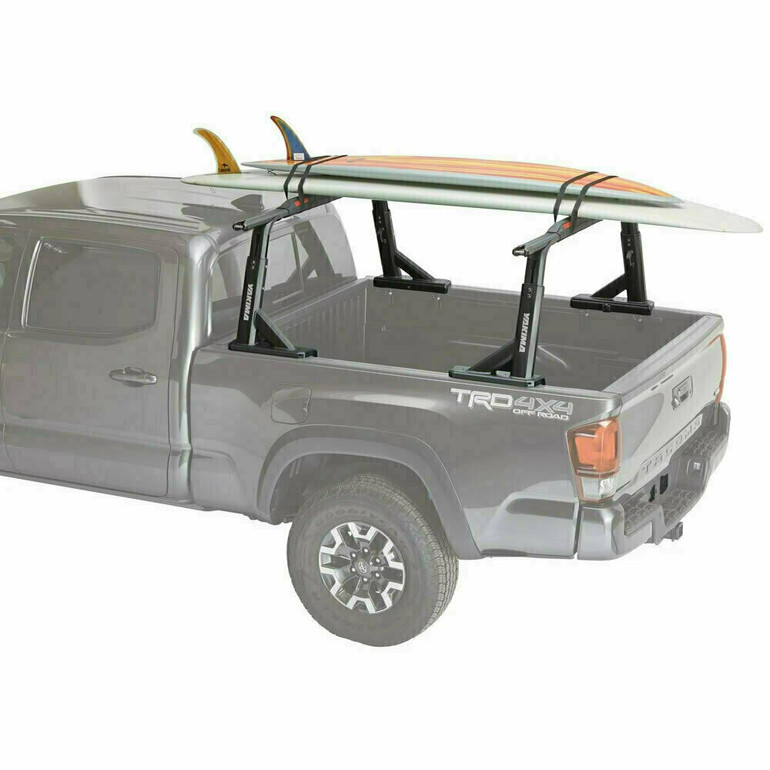

- Limited to 2 surf/sail/paddleboards. Boards must be stacked - NEVER carry side-by-side.
- The factory bedliner may need to be partially removed to install this carrier.
- OverHaul HD and OutPost HD require use of Bed Track Kit 1 (PN 8001168), for compatibility with factory bed-mounted tracks. Most factory bed-mounted tracks may also be removed to use included J-hook mounting hardware.
- Remove all factory bed mounted accessories prior to installation of your Yakima truck bed system.
- RoadShower SM and MD can accommodate crossbar spreads of 24” – 50”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
- RoadShower LG can accommodate crossbar spreads of 32” - 78”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
