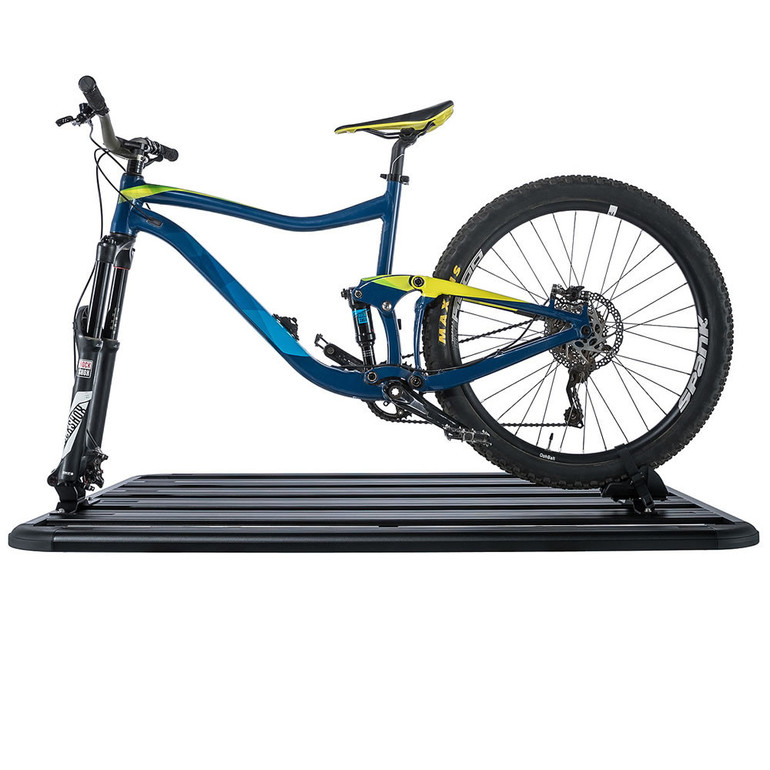

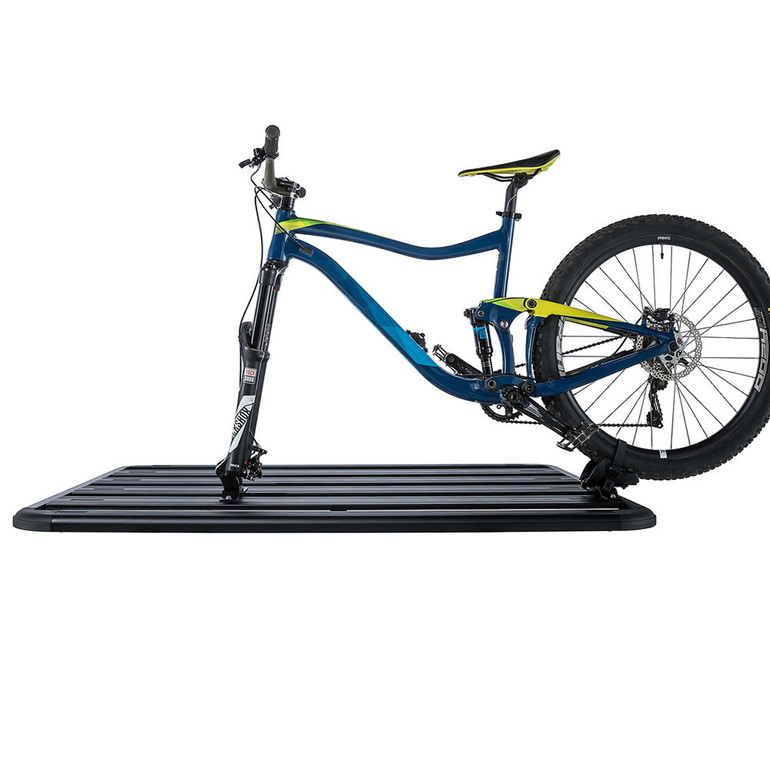

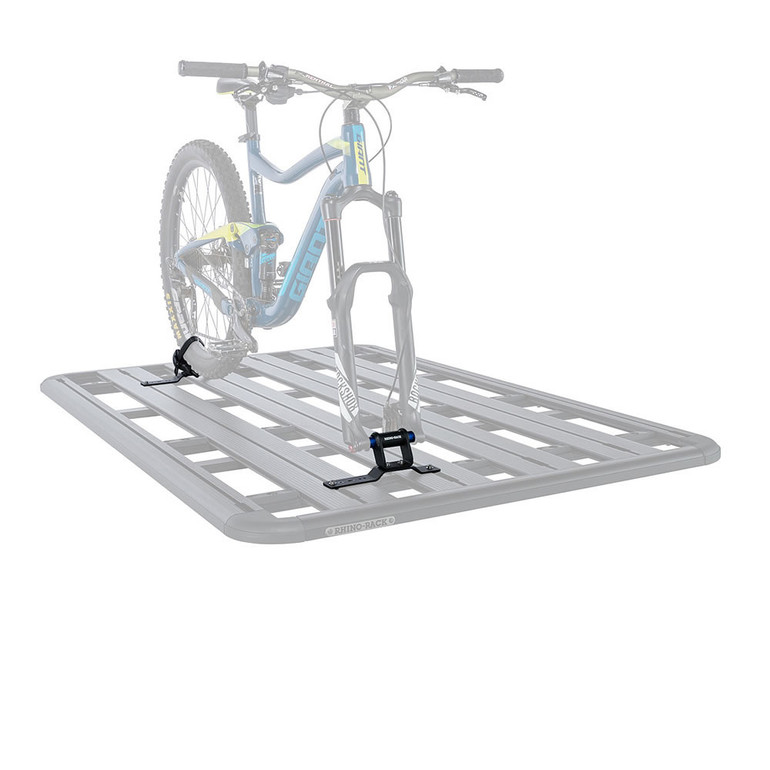

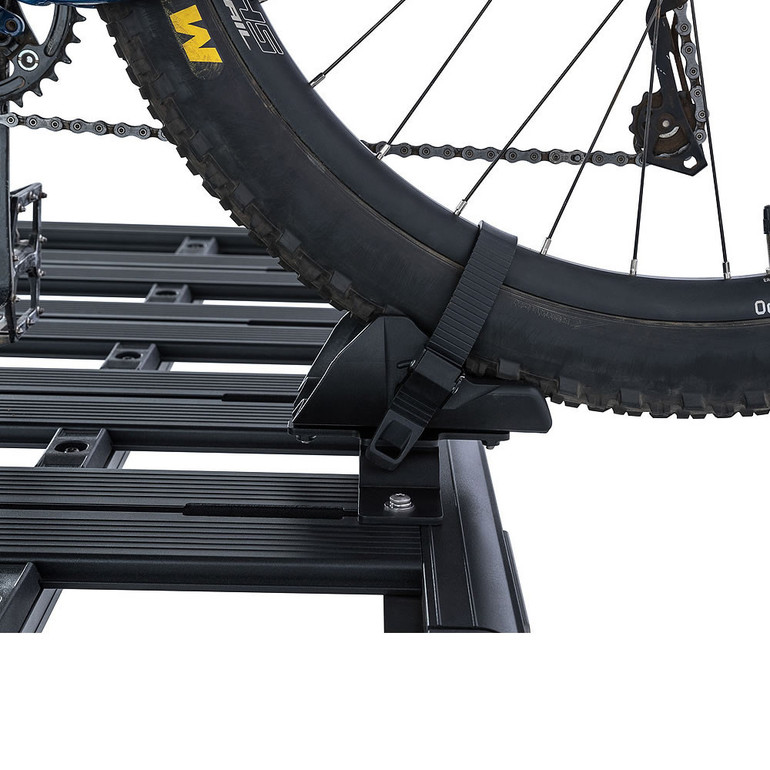

The Pioneer Thru Axle Bike Carrier allows you to attach a thru axle bike directly to a Pioneer system. Designed for strength and durability, it firmly secures your bike whilst reducing any sway and rocking created when driving. Securely attach your bike directly to your Pioneer platform via the front axle and rear wheel brace.

• sy and quick installation, using your existing thru axle or quick release skewer and rear wheel strap to secure the bike to the Pioneer
• 9mm x 100mm and 15mm x 110mm (Boost size) Multi-Axle Adaptors included, making it suitable for most bicycles with quick release wheels
• Includes the new patented Zwifloc channel nuts that allow the wheel mounts to be placed anywhere without moving other accessories. The Zwifloc nut simply drops into the channel, so there is no need to slide into position.

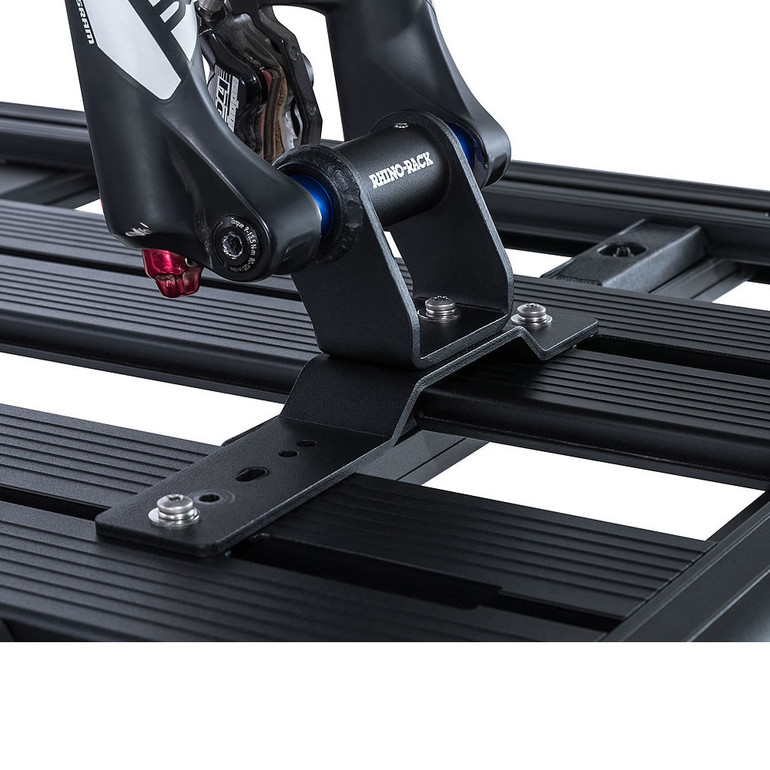

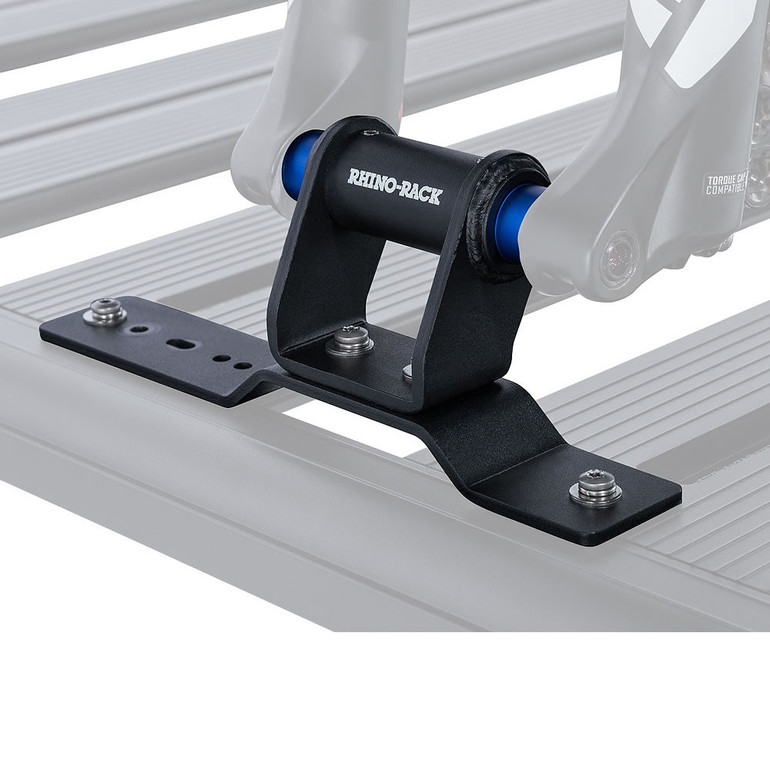

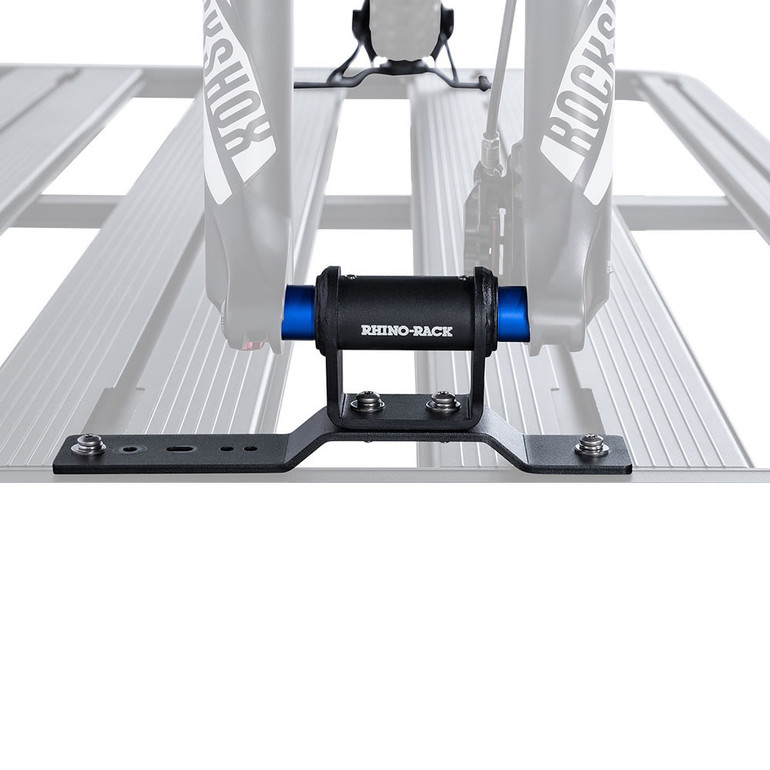

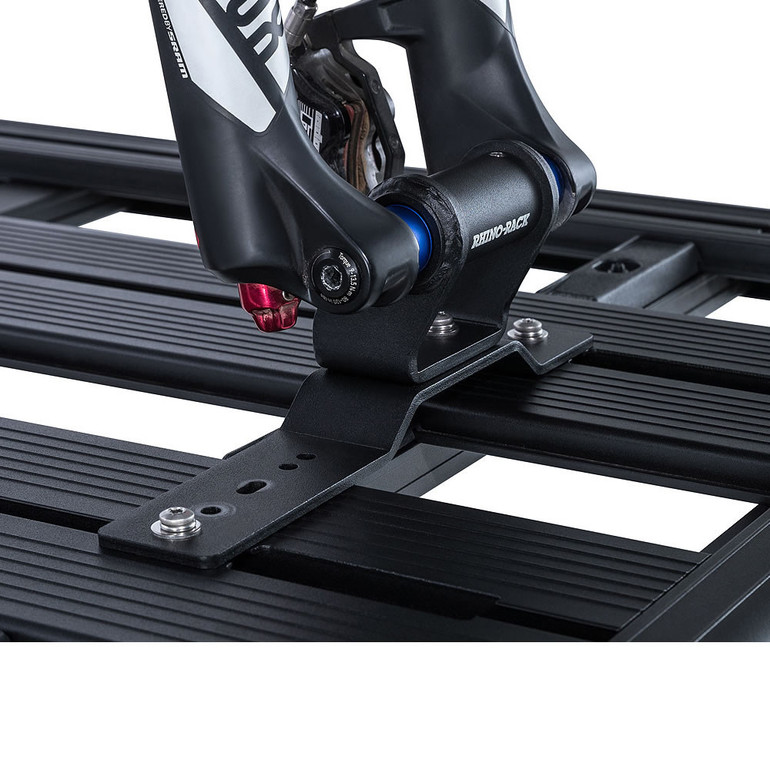

• A front wheel axle mount bracket, a rear wheel holder and all mounting hardware included.
• Compatible with all other Rhino-Rack Thru Axle inserts (view product compatibility for insert sizes)
• All fixings and tools included
• Quick and easy installation/removal
• The fork carrier can be rotated to prevent handlebars clashing
• Rear wheel carrier can be flipped to fit on smaller trays

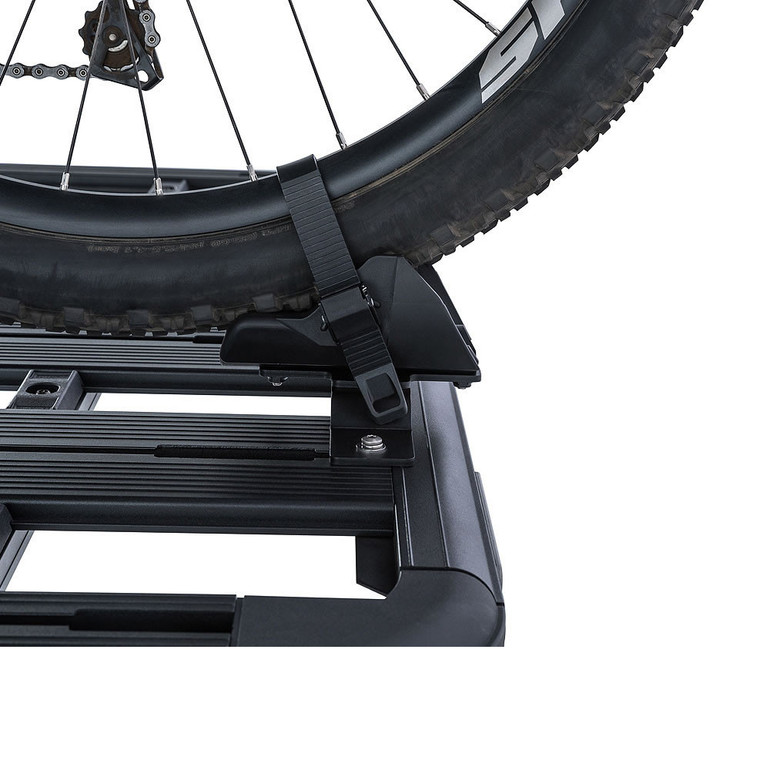

• Rear wheel strap fits <3" wheel dimensions
• Front mount height: 95mm
• Rear mount height (without strap): 98mm
• Maximum on-road weight allowance: 17kg/37lbs
• Maximum off-roading weight allowance: 11kg/24lbs
• Not suitable for +20kg electric bikes (SL allowed within weight limit)

INCLUDED ADAPTORS:

9mm x 100mm QR
15mm x 110mm Thru Axle

ADDITIONAL SPACING OPTIONS (Sold Separately):

RBCA030 (Multi Axle Adapter Kit): 12mm x 100mm, 15mm x 100mm, 20mm x 110mm
RBCA031: 12mm x 100mm
RBCA040: 15mm x 100mm (Non-Boost)

Package length: 12.99 inch
Package width: 5.12 inch
Package height: 3.94 inch
Color: Black
Off road weight allowance: 11kg/24lbs
On road weight allowance: 17kg/37lbs
Country of Origin: China

Mount Style:
Front Wheel off

ROOF RACK COMPATIBILITY:
Pioneer Platform - Compatible

Instructions >
