Product details

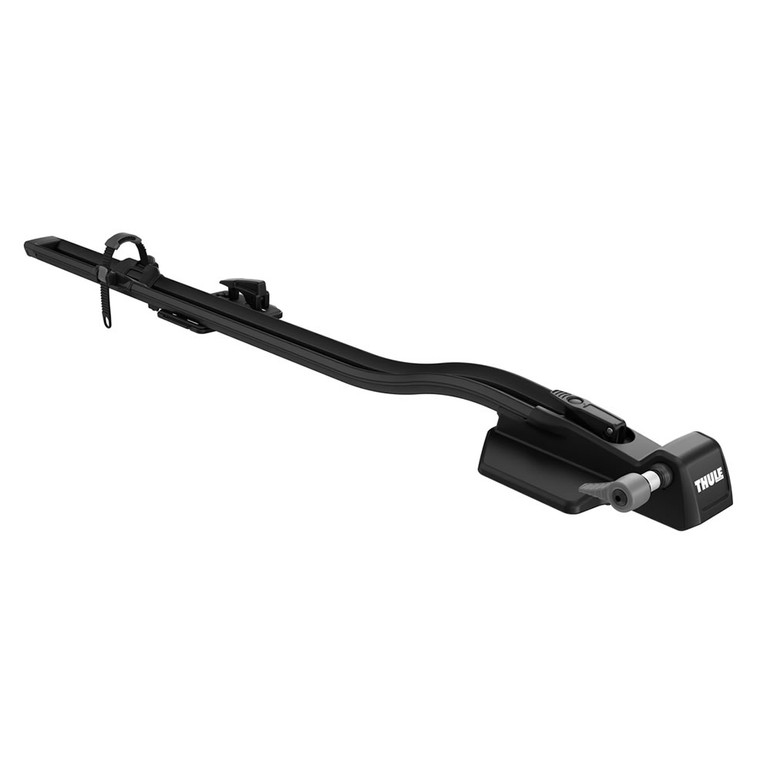

Sleek and versatile fork-mounted bike rack that offers convenient transport for Quick-release bikes.
FEATURES
- Easily mount standard Quick-release bikes (9 mm). Fits Thru-axle bikes (9-15mm) and 20x110mm Thru-axle bikes with additional adapters (sold separately)

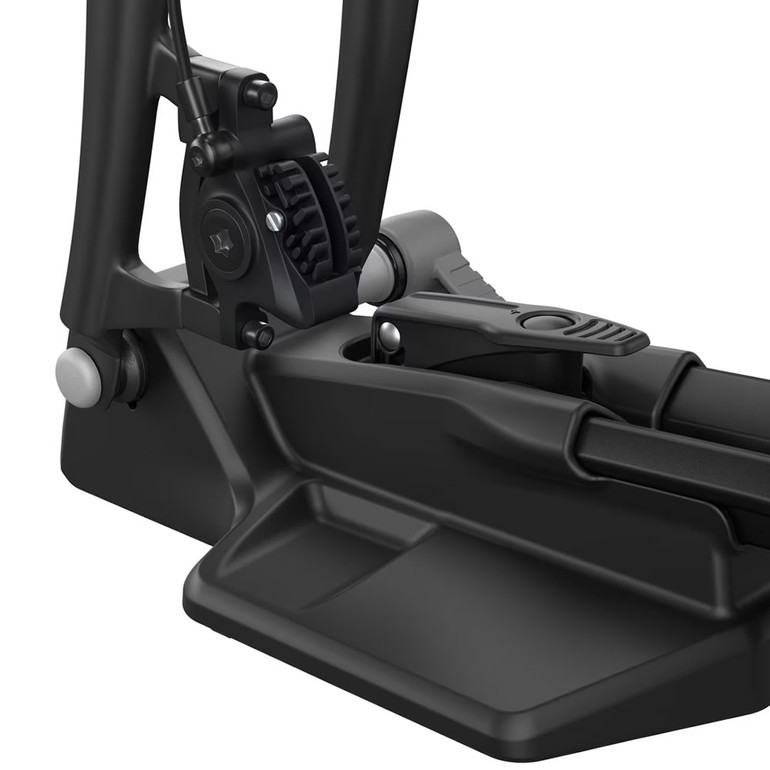

- Accommodates bikes with disc brakes

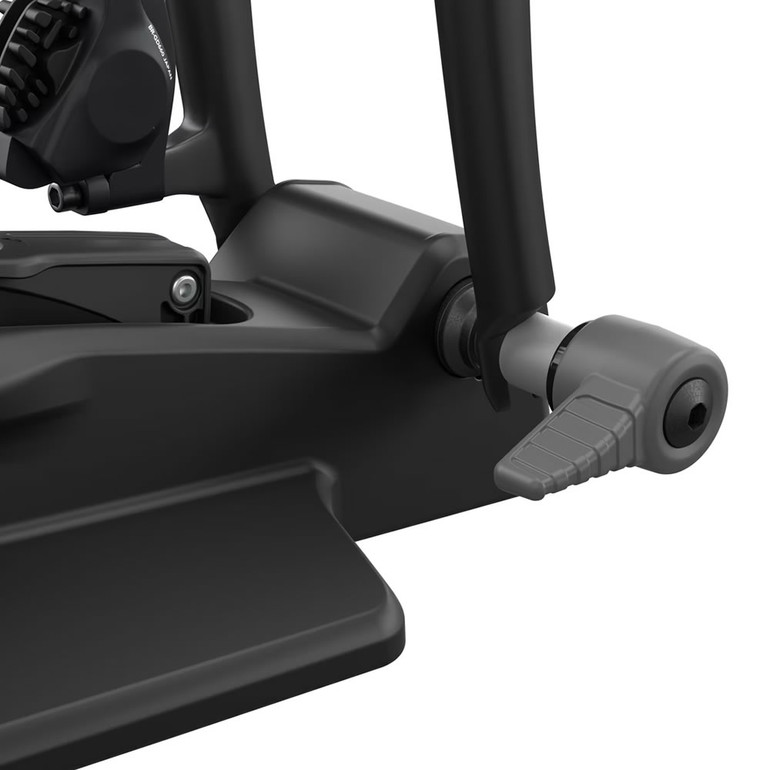

- Safe mounting of Quick-release bikes thanks to Thule AcuTight torque limiter knob that click when optimal torque is reached
- Convenient and easy installation of fork adapter for a secure bike fit
- The fork mount rack is easy and safe to mount thanks to audible confirmation of correct mounting

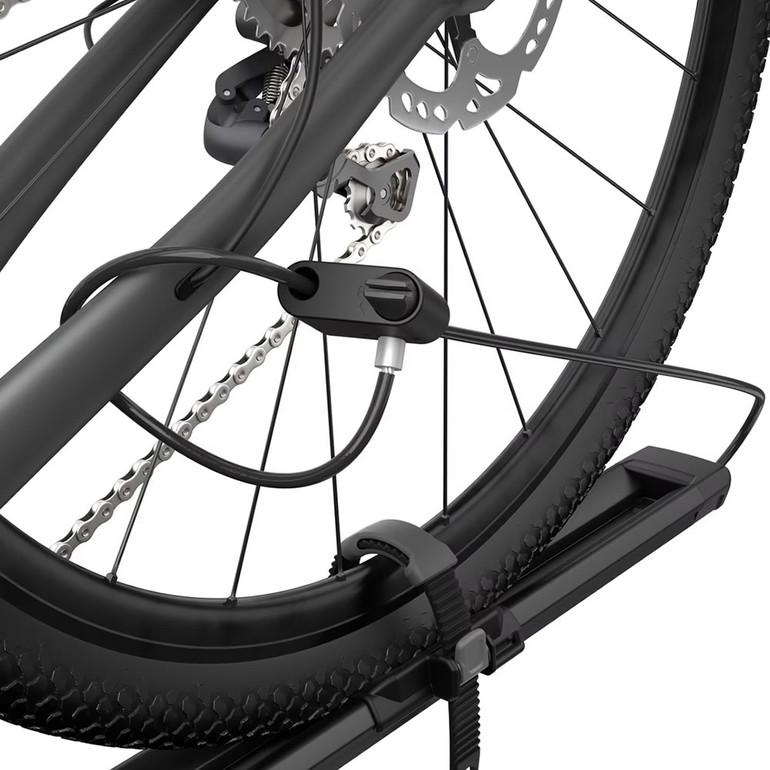

- Locks the bike to the bike rack and the bike rack to the roof racks (locks sold separately)
- Easy to switch carrier position from one side of vehicle to the other

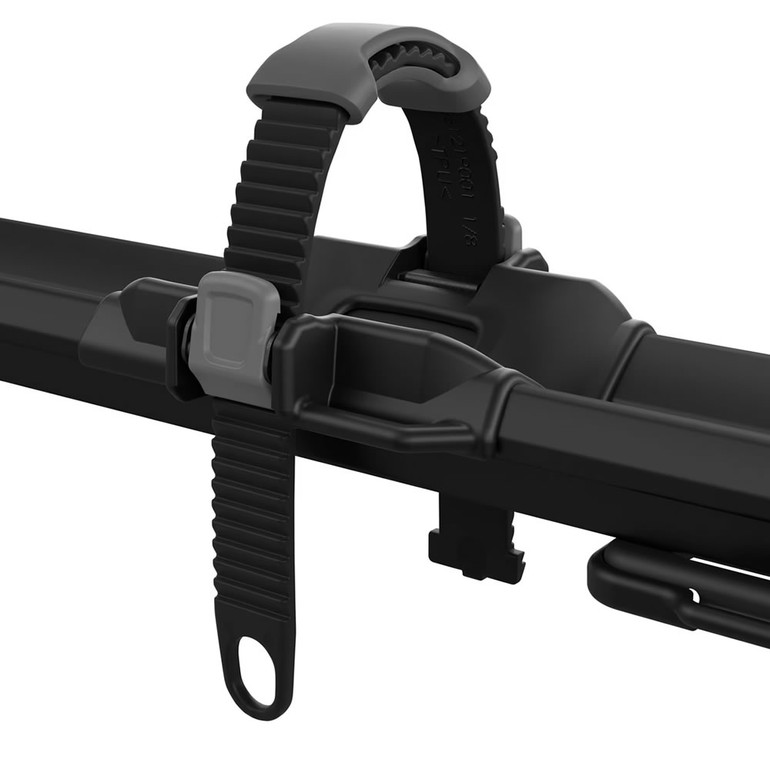

- Adjustable protective wheel strap holds the rear wheel securely in place

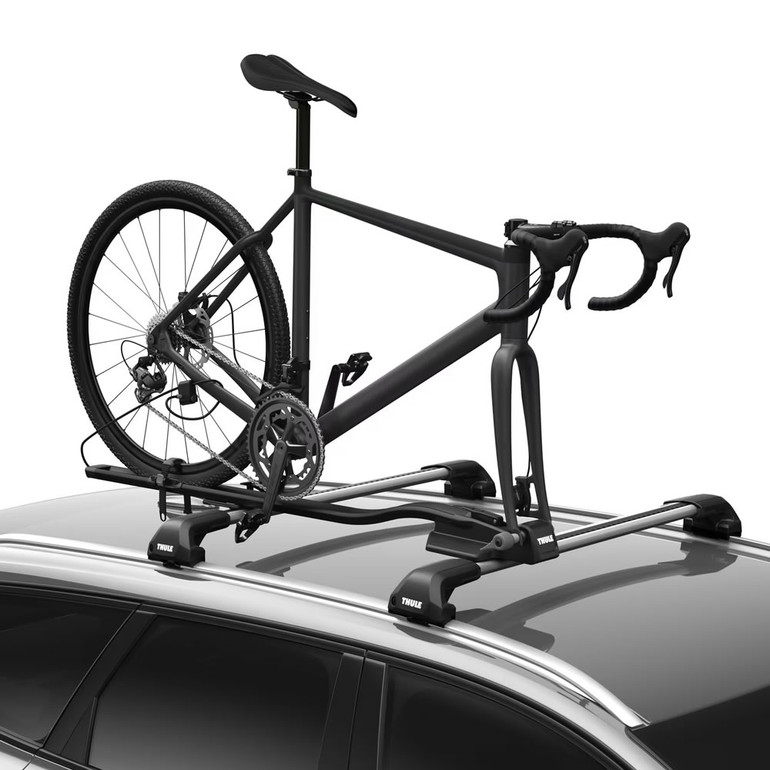

- Mounts to all Thule rack systems, round bars and most factory racks
| Load capacity | 40 lb |
|---|---|
| Dimensions (LxWxH) | 53 x 9 x 4 in |
| Weight | 7.28 lb |
| Max tire width | 3 in |
| Max wheel size (diameter) | 29 in |
| Max wheelbase | 1250 mm |
| Fits round frame dimensions | All |
| Thru-axle compatible | YES (Adapter/s required) |
| Carbon frame compatible | YES |
| Carbon fork dropout compatible | YES |
| Fits Thule WingBar Evo | YES |
| Fits Thule AeroBlade | YES |
| Fits Thule SquareBar Evo | YES |
| Fits Thule ProBar Evo | YES |
| Fits Thule Xsporter Pro | YES |
| Fits Thule TracRac - Truck | YES |
| Fits Thule TracRac - Van | YES |
| Color | Black |
| Model number | 564005 |
- Fork Type/Size:
- 9mm Quick-Release (Adapters available for Thru-Axles, sold separately)
- Max Bike Weight:
- 40 lbs
- Max Tire Size:
- 3 in
- Adapter required for Max Tire Size?:
- No, included
- Max wheel size (diameter):
- 29 in
- Max wheelbase:
- 1250 mm / 49 in
- Carbon frame compatible:
- Yes
- Carbon fork dropout compatible:
- Yes
- Mounting Hardware:
- T-Track & Clamp
- Security Included?:
- No, sold separately. 2-Pack of Cylinders per Mount
