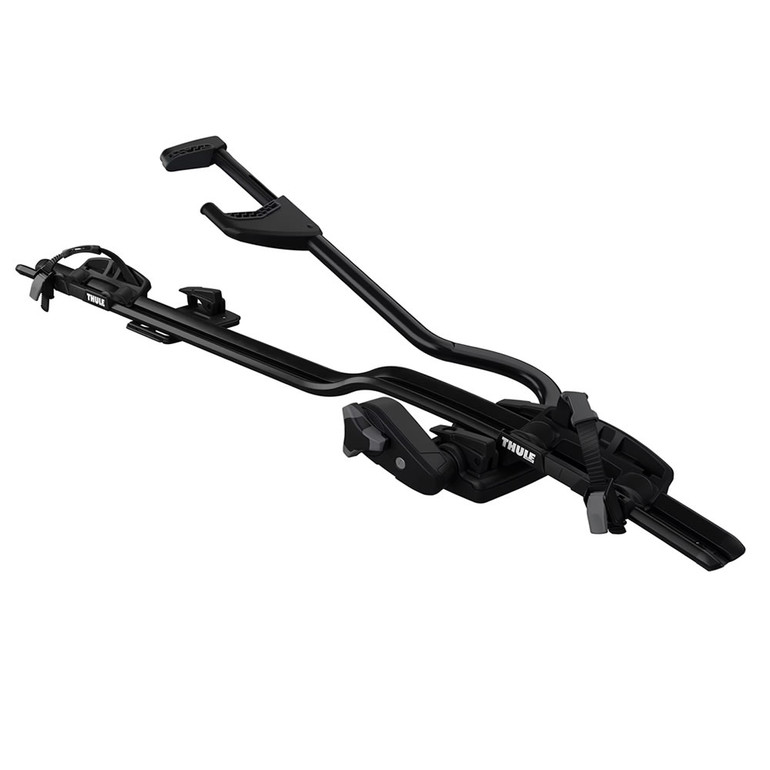

Thule ProRide XT | Upright Bike Mount

Upright bike carrier for the quickest, most convenient mounting – for bikes up to 44 lbs.

FEATURES

Automatically positions your bike when you secure it, thanks to the uniquely designed frame holder and wheel tray
Quick and easy bike securing – the torque limiter dial controls the force going into the bike frame with a clear sign of correct mounting
Improved mounting hardware fits most factory cross bar profiles
Pressure is spread via large, soft claw pads that adapt to your bike’s frame tubes – minimizing the risk of frame damage
Safe mounting – your bike is prevented from falling thanks to the claw’s extended lower jaw
Stable wheels – firmly fixed in smartly designed wheel holders with diagonal quick-release wheel straps

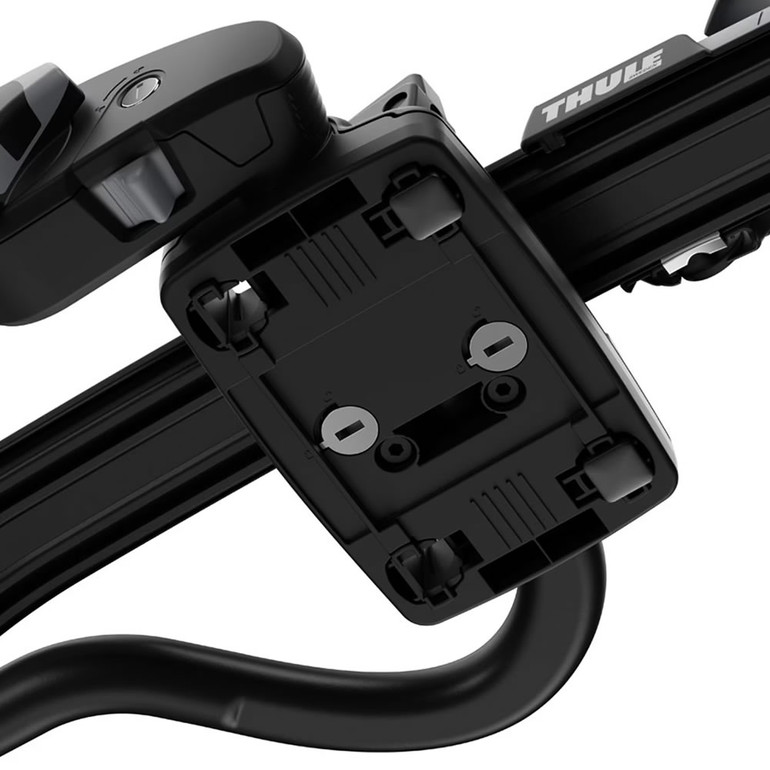

Easy, tool-free interface for switching carrier from one side of your car to the other.
Mounts to all Thule rack systems, round bars and most factory racks
2 One Key lock cylinders (sold separately) lock the bike to carrier and carrier to rack.

Load capacity	44 lb
Dimensions (LxWxH)	58 x 13.5 x 4 in
Weight	11 lb
Max wheel size (diameter)	29 in
Max wheelbase	1235 mm
Fits round frame dimensions	22-80 mm
Thru-axle compatible	YES
Carbon frame compatible	Adapter/s required Thule Carbon Frame Protector
Fits Thule WingBar Evo	YES
Fits Thule AeroBlade	YES
Fits Thule SquareBar Evo	YES
Fits Thule ProBar Evo	YES
Fits Thule Xsporter Pro	YES
Fits Thule TracRac - Truck	YES
Fits Thule TracRac - Van	YES
One Key System compatible	YES
Color	Black
Model number	598004

Fits round frame dimensions:: 22-80 mm
Max Bike Weight:: 44 lbs
Max Tire Size:: 3 in
Adapter required for Max Tire Size?:: No, included
Max wheel size (diameter):: 29 in
Max wheelbase:: 1235 mm / 48.5 in
Carbon frame compatible:: Yes, when Thule Carbon Frame Protector is used, sold separately
Mounting Hardware:: T-Track & Clamp
Security Included?:: No, sold separately. 2-Pack of Cylinders per Mount
