Product details
This product bundle has already been pre-fitted and tested for this specific vehicle with fixed points, tracks, or some flush rails with fixed points.
What's Included: 4 Yakima SkyLine Towers, 2 Load Bars (of your choice), and vehicle specific Landing Pad or Pads if applicable.
Roof racks made simple: You need 2 load bars, 4 towers for a base roof rack, and landing pad kit.
Once you have your base roof rack, you can now add your gear-specific mounts for bikes, kayaks, cargo boxes, etc.
Since the towers are predefined, you only need to choose which load bars best suit your needs. The table below will give you a quick rundown on the differences.
Our best-selling bar is the JetStream bar for its noise reduction, aero efficiencies, and accessory mounting versatility. See below for more details.
WHICH BARS DO I CHOOSE?
JetStream Load Bars (Black):
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise
Wind Noise:
JetStream Load Bars (Black):
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction
JetStream Load Bars (Silver):
- Minimizes drag for maximum efficiency
- Better aero-performance = less wind noise
Wind Noise:
JetStream Load Bars (Silver):
- T-Slots run the full length of the load bar, maximizing capability.
- T-Slot rubber infill for easy mount attachment/noise reduction
CoreBar Load Bars:
- Roll-formed galvanized steel
- Vinyl wrapped for corrosion resistance
Wind Noise:
CoreBar Load Bars:

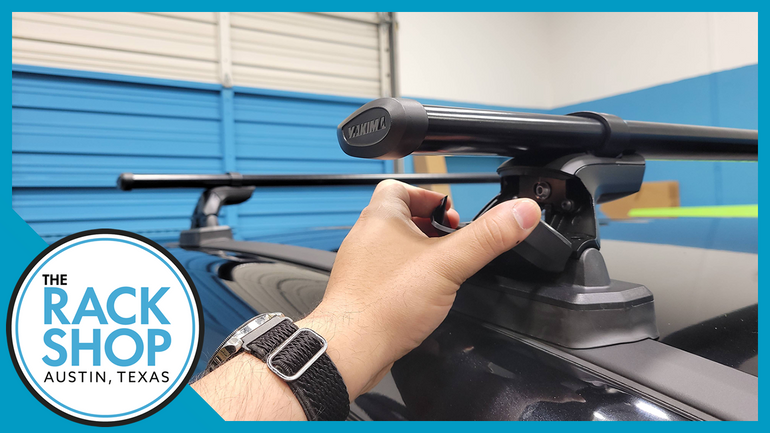

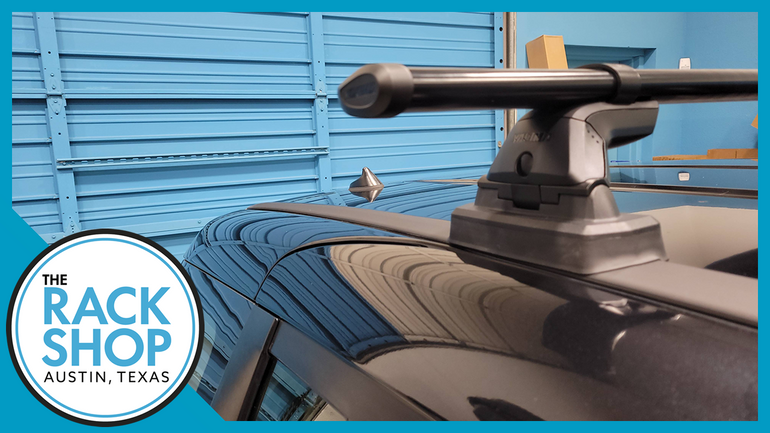

SkyLine Towers:
- Fits all styles of Landing Pad
- Secure and simple – may be the easiest-to-use rack system out there
- Works with JetStream, CoreBar and RoundBar crossbars
- BarBed™ has 12° of pitch adjustment to optimize tower position and level bars on roofs with curved flush rails
- Maximum load rating of 220lbs (100kg), depending on vehicle and bar rating
- Easily locks to you vehicle with our SKS system (sold separately)
Landing Pads:
- Some kits are sold in sets of 2 and some in sets of 4. This bundle will have the correct amount!
- Snap-on covers keep out the elements when the rack is removed
- Snap-on covers keep out the elements
Have questions? Email hello@therackshop.com, call 512-351-9849, or stop by the shop!
The Rack Shop
7200 McNeil Drive, B2
Austin, TX 78729
BASE RACK
LANDING PAD: Landing Pad 22
TOWER: SkyLine Towers (Set of Four)
FAIRING: 40" WindShield
MINIMUM BAR SIZE: Small
MEASUREMENTS
M4: 32 "
M4MAX: 32 "
WEIGHT LIMIT: 165 lbs
NOTES
idNote
2 HullRaiser and HighRoller require one set of MightyMount 39H (PN 8003539) to be compatible with Yakima CoreBar, JetStream bars and FX systems.
5 HullyRollers, MultiMount, and Mako Saddles require one set of MightyMount 39H (PN 8003539) per pair to be compatible with Yakima CoreBar, JetStream bars and FX systems.
14 Using Yakima RoundBars with Yakima BaseLine, TimberLine, SkyLine, RidgeLine, or SightLine towers will require the purchase of RoundBar SL Adapter (PN 8003536) sold separately.
31 "Flat" pad is required for this application.
34 Use M6x28 mounting hardware for this application.
59 Arrows on Landing Pad should be pointed away from the middle of the vehicle.
64 CAUTION! Do not over tighten Landing Pad hardware. Pad should be snug against the roof with no movement.
69 Visit https://yakweb-assets.s3.amazonaws.com/HatchClearance.pdf for rear hatch clearance information regarding cargo boxes.
81 All loads extending beyond the length of the roof (except cargo boxes) must be secured to both the front and rear of the vehicle, in addition to the rack.
82 SideWinder (Tandem Bike Mount) is compatible with Yakima RoundBar only.
100 ShowDown requires 3”-6” of crossbar protruding beyond your towers to safely clear the side of your vehicle. Your vehicle may require a crossbar larger than the recommended minimum to achieve adequate side clearance.
109 Always be sure to tie down your SUP as per instructions. SupPup and SupDawg require using nose tie down strap.
110 If your vehicle is equipped with a sunroof or panoramic glass roof, prior to operation, ensure adequate clearance exists with roof rack and/or accessories installed.
132 Any load/mount extending beyond the rear hatch seam may cause interference.
191 Limited to 2 surf/sail/paddleboards. Boards must be stacked - NEVER carry side-by-side.
604 RoadShower SM and MD can accommodate crossbar spreads of 24” – 50”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
607 RoadShower LG can accommodate crossbar spreads of 32” - 78”. The distance from the front or rear clamp to the end of the shower must not be greater than 30”. Do not mount RoadShower outboard of tower.
611 MajorShady can accommodate crossbar spreads of 26" - 76". The distance from the front or rear clamp to the end of the awning must not be greater than 50". Do not mount greater than 1" outboard of tower.
612 MajorShady is not compatible with Yakima Round Bar or CoreBar.
