The latest system can be operated via switch panel or smartphone. It’s not limited to just controlling the “ON/OFF” of the LED Lights or electrical devices. Change the backlight color and lighting modes to have fun programming with Auxbeam latest RGB switch panel!

Upgraded Functions:

• RGB backlight - Unlimited color options match dash lighting and vehicle
• 3 mode setting - Toggle/ Momentary/ Pulsed
• Bluetooth APP control - Access to accessories no matter whether you are in the vehicle (The QR code of APP can be
• found in the picture)
• Group setting - Set up a group via APP to control 2 or more lights at the same time
• DIY switch panel - 60pcs stickers/ 200 default icons/ custom picture from your own album

Features:

• AR-800 RGB Switch Panel

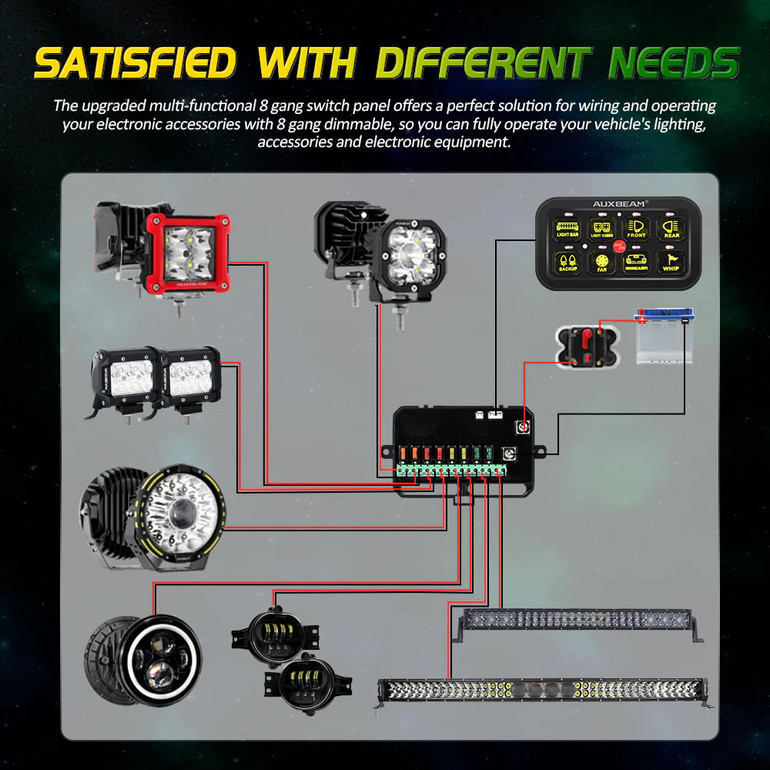

• 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.

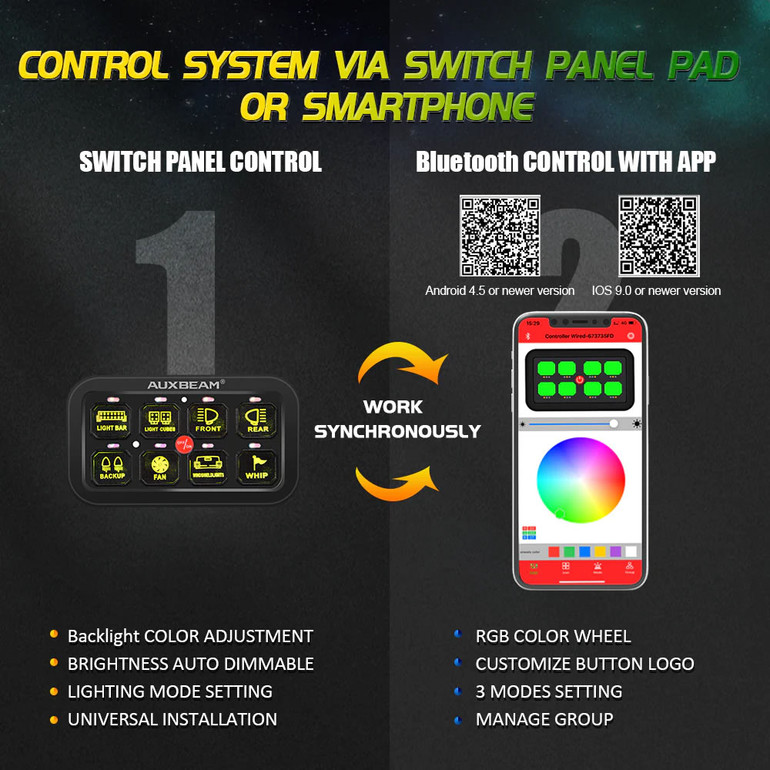

• 2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
• 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
• - RED-Toggle, Constant light mode (Great for things like fog lights or driving. )
• - BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
• - GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
• RGB backlight color. Adjust backlight color and brightness to match your vehicle.
• Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
• Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
• DIY button icon on APP. 200 default icons or use your own photos from the phone album.
• Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
• Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
• Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
• Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
• Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
• With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

How to program and operate RGB switch panel system: https://www.youtube.com/watch?v=i0ThvidkmVo

If you need additional stickers, please purchase SKU: QP009375, https://auxbeam.com/products/qp009375

Specification:

• Working voltage: DC 12-24V
• Max current: 60A
• Rated voltage: 12V 20A / 24V 10A
• Operating at 12 Volts: max power rating of 720W
• Operating at 24 Volts: max power rating of 1200W
• Switch operation: On-Off
• Operating temperature: -40°C - +105°C
• Waterproof rating: IP65

Package Included:

• 1 Set of 8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)
• Installation Instructions

Bluetooth Connection Requirements:

• Compatible with IOS & Android devices
• IOS 9.0 or newer version, Android 4.5 newer version
• Download the “Switch panel” app from Apple store or Google Play Store (free download). Scan QR code on the instructions.
• If your Android device can not connect to the APP, please turn on GPS positioning and allow “Switch Panel” to access your phone’s location while using the APP.
