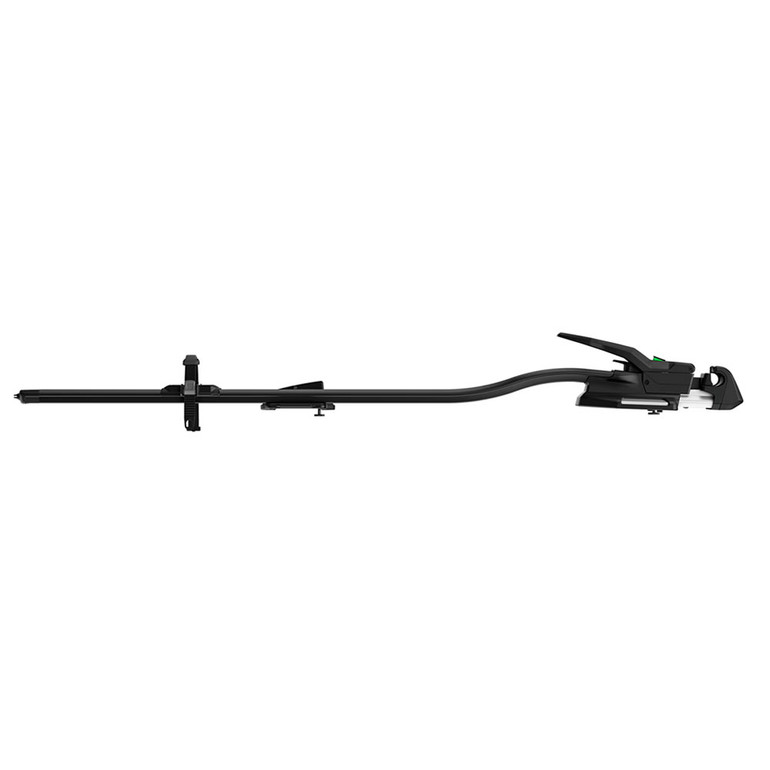

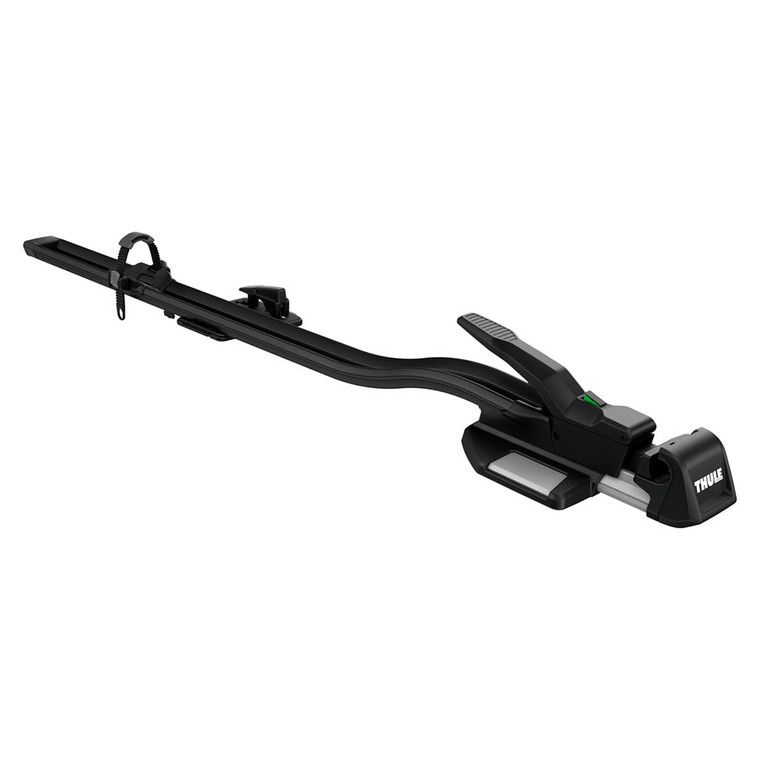

Thule TopRide | Fork Bike Mount For Thru & QR Axles

$299.95
SKU:
568005
UPC:
91021745643
Shipping:
Free Shipping
Hurry! Only left
Wish List
Braintree

Thule TopRide | Fork Bike Mount For Thru & QR Axles

$299.95

Product details

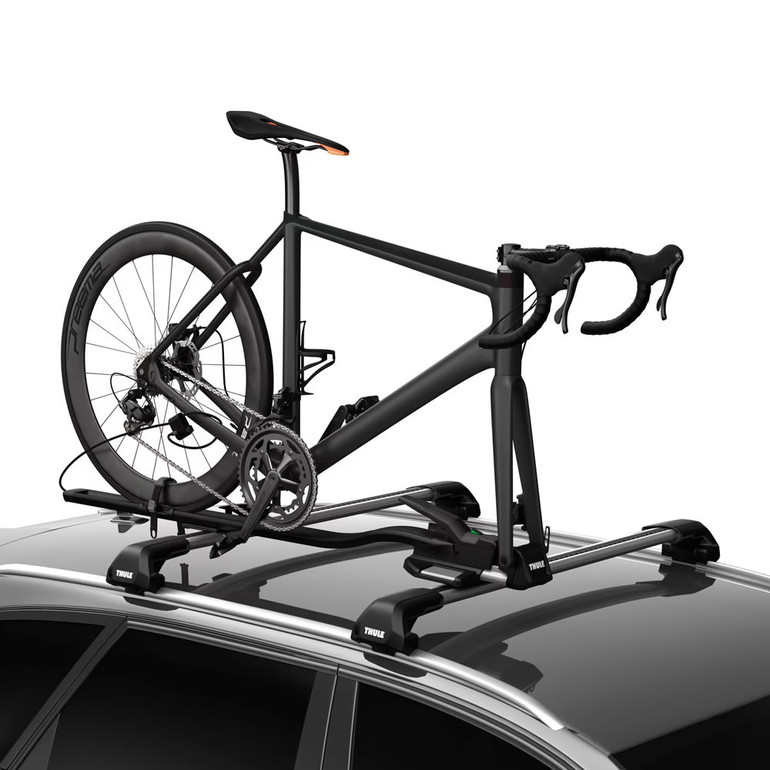

Premium fork mount roof bike rack for the bike enthusiast with fast and easy mounting for both Thru-axle and standard Quick-release bikes.

FEATURES

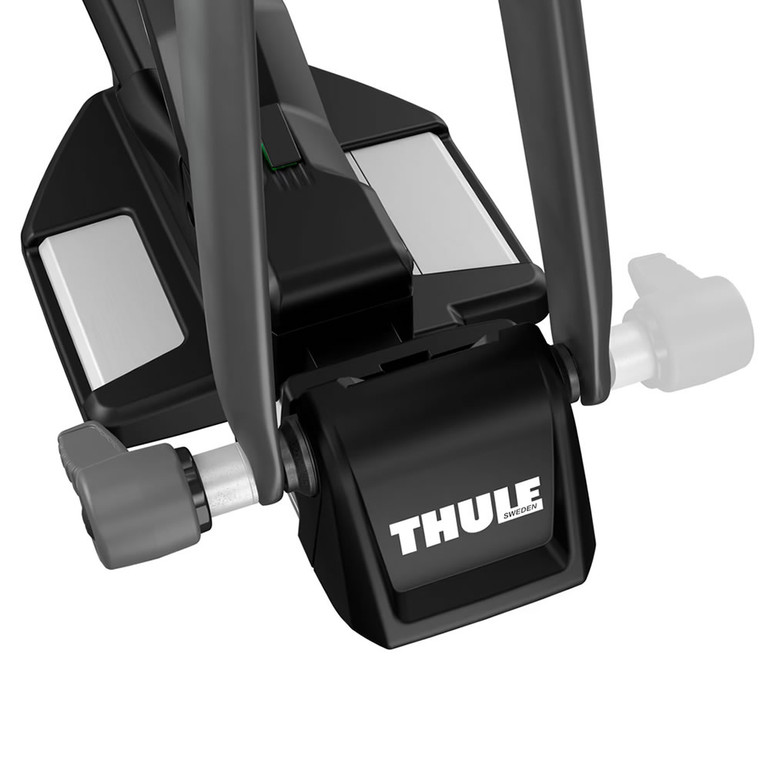

  • Easily mount Thru-axle bikes (9-15mm) and standard Quick-release bikes (9 mm).
  • Fits Thru-axle sizes:
    • 12 x 100mm
    • 12 x 110mm
    • 15 x 110mm
    • 15 x 100mm
  • Accommodates bikes with disc brakes
  • Fasten your bike to the fork adapter on the ground for easy mounting

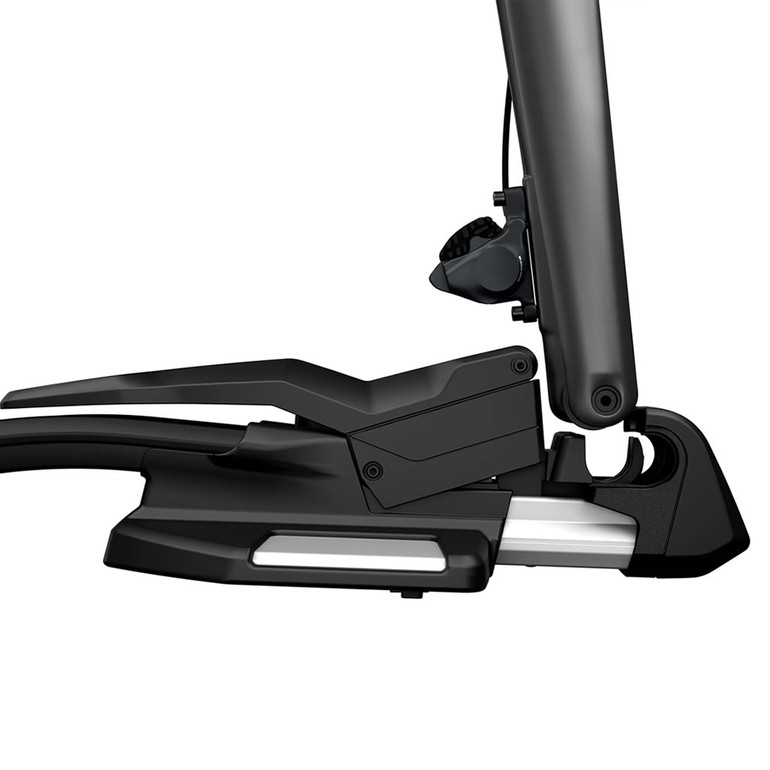

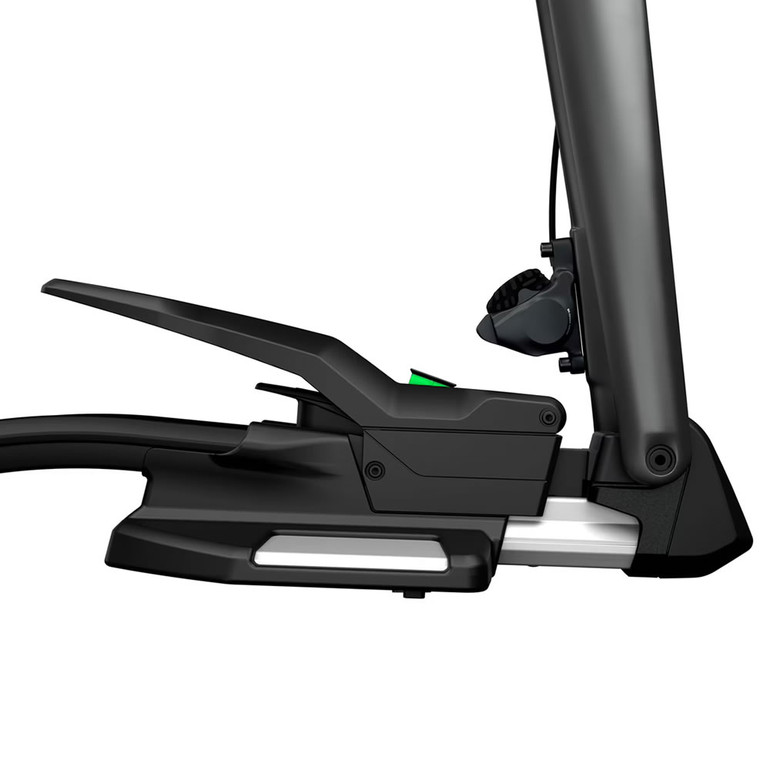

  • The bike slides into the carrier on a guided track on the fork adapter and clicks into place

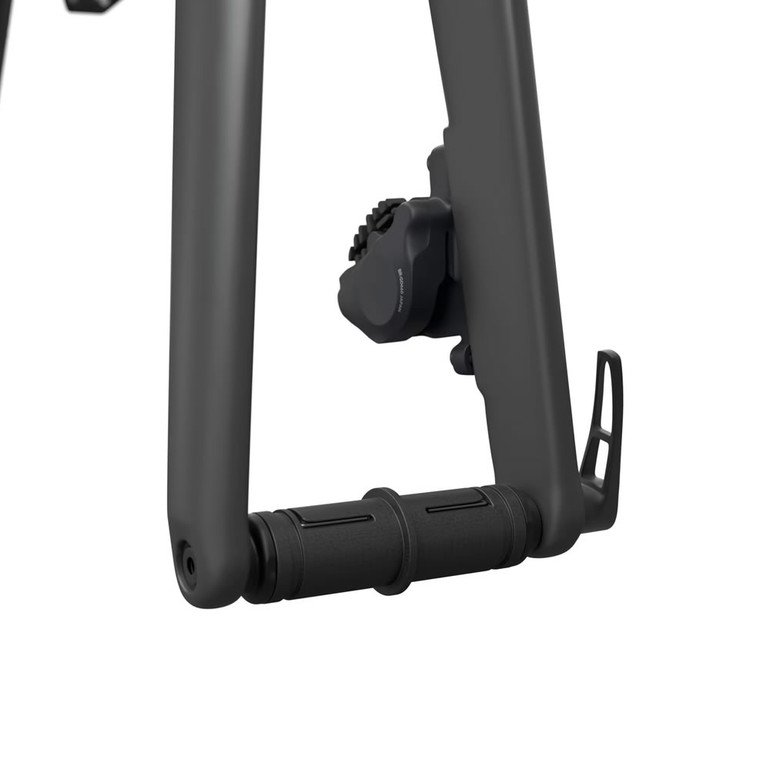

  • Convenient and easy installation of fork adapter for a secure bike fit
  • The fork mount rack is easy and safe to mount thanks to audible and visual confirmation of correct mounting
  • Unmount bikes from the rack easily with a release lever

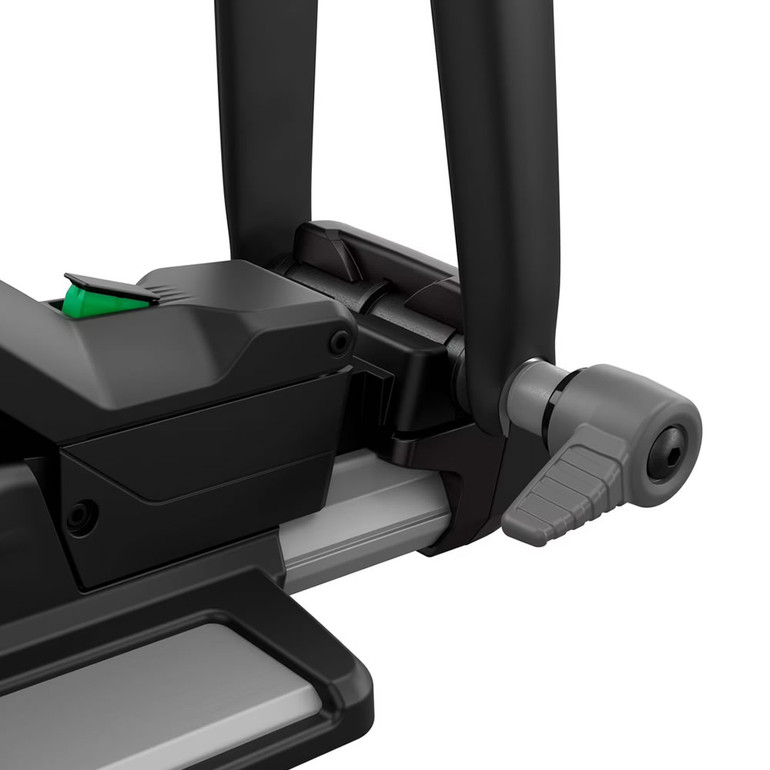

  • Safe mounting of Quick-release bikes thanks to Thule AcuTight torque limiter knob that click when optimal torque is reached
  • Locks the bike to the bike rack and the bike rack to the roof racks (locks sold separately)
  • Easy to switch carrier position from one side of vehicle to the other

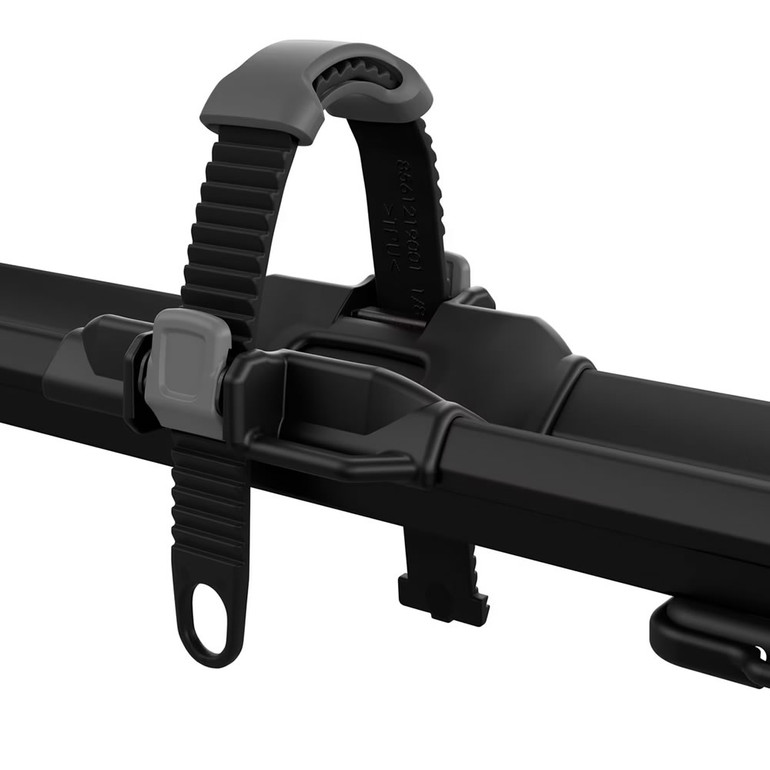

  • Adjustable protective wheel strap holds the rear wheel securely in place
  • Mounts to all Thule rack systems, round bars and most factory racks

Instruction Manual >

Load capacity  40 lb
Dimensions (LxWxH)  55 x 8 x 6 in
Weight  7.7 lb
Max tire width  3 in
Max wheel size (diameter)  29 in
Max wheelbase  1250 mm
Fits round frame dimensions  All
Thru-axle compatible  YES
Carbon frame compatible  YES
Carbon fork dropout compatible  YES
Fits Thule WingBar Evo  YES
Fits Thule AeroBlade  YES
Fits Thule SquareBar Evo  YES
Fits Thule ProBar Evo  YES
Fits Thule Xsporter Pro  YES
Fits Thule TracRac - Truck  YES
Fits Thule TracRac - Van  YES
One Key System compatible  YES
Color  Black
Model number  568005
Fork Type/Size:
9mm Quick-Release, 12 x 100mm, 12 x 110mm, 15 x 110mm, 15 x 100mm
Max Bike Weight:
40 lbs
Max Tire Size:
3 in
Adapter required for Max Tire Size?:
No, included
Max wheel size (diameter):
29 in
Max wheelbase:
1250 mm / 49 in
Carbon frame compatible:
Yes
Carbon fork dropout compatible:
Yes
Mounting Hardware:
T-Track & Clamp
Security Included?:
No, sold separately. 2-Pack of Cylinders per Mount
